How to Get The URL Trigger of a Macro Into the Clipboard via Script

athmandest · February 10, 2023, 12:14pm

I have an AppleScript that creates a KM macro and I would like to expand it to get the URL trigger of the created macro into the clipboard.

Anyone knows how to achieve that?

Nige_S · February 10, 2023, 12:49pm

The URL trigger is just the "id" of the macro prefixed with kmtrigger://macro= and with an optional parameter postfix. So:

tell application "Keyboard Maestro"
	tell macro group "Tests"
		set theMacro to make new macro with properties {name:"Automated Test"}
	end tell
	set theID to id of theMacro
end tell
set the clipboard to ("kmtrigger://macro=" & theID)

athmandest · February 10, 2023, 1:28pm

Nige_S:

tell application "Keyboard Maestro"
	tell macro group "Tests"
		set theMacro to make new macro with properties {name:"Automated Test"}
	end tell
	set theID to id of theMacro
end tell
set the clipboard to ("kmtrigger://macro=" & theID)

Thank you for the swift help.

noisneil · February 11, 2023, 10:28am

Or if you want to use native KM actions:

Current Macro URL Trigger to Clipboard.kmmacros (21 KB)

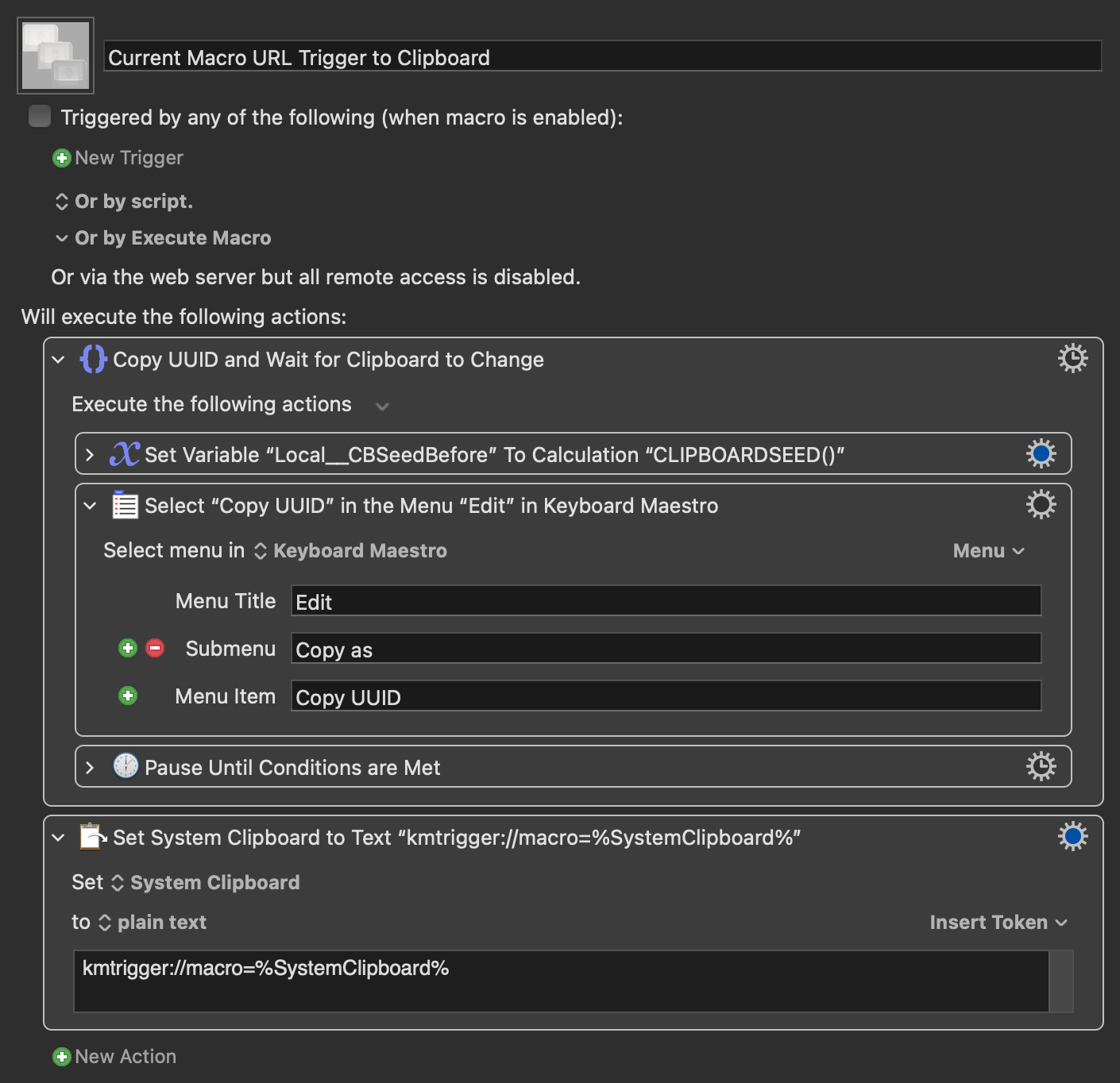

Macro screenshot

athmandest · February 11, 2023, 11:41am

Very nice, Neil. thank you.

Nige_S · February 11, 2023, 6:31pm

Do remember that when you create a macro with AppleScript it won't be the current macro in KM (unless you then switch to it). So it'll depend on your workflow as to whether you grab the trigger as part of the AppleScripted creation, or you later open the macro in KM and use Neil's native actions.

athmandest · February 11, 2023, 7:38pm

Thx for the hint.

I am using hook and markdown to switch to the macro created with AppleScript. Do you happen to know another way?

Nige_S · February 11, 2023, 11:01pm

Just add select theMacro, after you've created it, to the script:

tell application "Keyboard Maestro"
	tell macro group "Tests"
		set theMacro to make new macro with properties {name:"Automated Test"}
	end tell
	set theID to id of theMacro
	select theMacro
end tell
set the clipboard to ("kmtrigger://macro=" & theID)

ccstone · February 11, 2023, 11:19pm

Hey Nige,

That looks about right.

One convention I tend to use is new instead of the for new objects (newMacro).

It jumps out at me more as a new object.
I may want to use theObject elsewhere in the script.

Here's a alternative way to write your script just for kicks:

tell application "Keyboard Maestro"
   tell macro group "Test Group.ccstone" to ¬
      set newMacro to make new macro with properties {name:"Automated Test"}
   tell newMacro
      set theID to its id
      select it
   end tell
end tell
set the clipboard to ("kmtrigger://macro=" & theID)

There are apps where select it would not work from within the tell newMacro block, and there's no simple way to learn this in advance of testing.

-Chris

athmandest · February 12, 2023, 5:51pm

coolest forum evva. you guys are soo helpful. thx again.
greets from greece

Nige_S · February 12, 2023, 7:18pm

And for more kicks...

tell application "Keyboard Maestro" to tell macro group "Tests" to select (make new macro with properties {name:"Automated Test"})
tell application "Keyboard Maestro" to set the clipboard to ("kmtrigger://macro=" & id of item 1 of (get the selection))

While there's probably a way to both select the new macro and put its id on the clipboard in only one line of AS, I'm not seeing it. Anyone care to put me out of my misery?

athmandest · February 12, 2023, 10:13pm

Hi Guys,

Since I see so much concentrated KM expertise here, I would like to humbly ask someone with some time at their hands to please have a look at this script and maybe give me a hint why the last part with the AppleScript macro action is not working.

# Run this script when you have selected a message in mail app
# Get info of the selected message in mail app

tell application "Mail"
   activate
   set selectedMessage to selection
   set thisMessage to item 1 of selectedMessage
   set thisSender to sender of thisMessage
   set thisEmail to extract address from thisSender
   set thisName to extract name from thisSender
   set thisEmailLabel to "Work"
   set theMacroGroupName to "Trial Automations Macro Group"
   set theTestMailbox to "TestVariable"
end tell

# Close Mail Application if open

tell application "Mail"
   quit
end tell

# Create new contact in contact app

tell application "Contacts"
   set thePerson to make new person with properties {first name:thisName, last name:""}
   tell thePerson
      make new email at end of emails with properties {label:thisEmailLabel, value:thisEmail}
   end tell
   save
end tell

delay 2

# Create new mailbox with person full name

tell application "Mail"
   activate
end tell

delay 0.6

tell application "System Events" to click UI element "Mail" of list 1 of application process "Dock"

tell application "System Events" to set frontmost of process "Mail" to true

delay 1

tell application "Mail"
   activate
   tell account "🍎Apple iCloud"
      set fullName to thisName
      make new mailbox with properties {name:"Contacts🙋🏼‍♀️/subFolder"}
      set the name of mailbox named "Contacts🙋🏼‍♀️/subFolder" to fullName
   end tell
end tell

# Create new rule with person full name

tell application "Mail"
   set newRule to make new rule at end of rules with properties {name:thisName, enabled:true, should move message:true}
   set contactString to "Contacts🙋🏼‍♀️/"
   set mailboxPath to contactString & thisName
   tell newRule
      make new rule condition at end of rule conditions with properties {rule type:from header, expression:thisEmail, qualifier:does contain value}
      set move message to (mailbox mailboxPath of account "🍎Apple iCloud" of application "Mail")
   end tell
end tell

# Reveal the created contact

tell application "Contacts"
   activate
end tell

delay 0.6

tell application "System Events" to click UI element "Contacts" of list 1 of application process "Dock"

tell application "System Events" to set frontmost of process "Contacts" to true

delay 1

set selection to thePerson

delay 2

# Reveal the created mailbox

tell application "Mail"
   activate
end tell

delay 0.6

tell application "System Events" to click UI element "Mail" of list 1 of application process "Dock"

tell application "System Events" to set frontmost of process "Mail" to true

delay 0.5

tell application "Mail"
   activate
   set theMailbox to mailbox "Contacts🙋🏼‍♀️/theName" of account "🍎Apple iCloud"
   set selected mailboxes of front message viewer to theMailbox
end tell

delay 2

# Reveal the mail preferences

tell application "System Events"
   keystroke "," using command down
end tell

set theMacroGroupName to "Trial Automations Macro Group"

set theMailbox to "TestVariable"

# Creates Macro that opens the new Mailbox when triggered

tell application id "com.stairways.keyboardmaestro.editor"
   if macro group theMacroGroupName exists then
      set theMacroGroup to macro group theMacroGroupName
   else
      # Will create a New Macro Group
      set theMacroGroup to make new macro group with properties {name:theMacroGroupName, available application xml:"<dict>
<key>Targeting</key>
<string>Included</string>
<key>TargetingApps</key>
<array>
<dict>
<key>BundleIdentifier</key>
<string>com.apple.mail</string>
<key>Name</key>
<string>Mail</string>
<key>NewFile</key>
<string>/System/Applications/Mail.app</string>
</dict>
</array>
</dict>"}
   end if

   # Creates new Macro with Ctrl N Trigger
   set m to make new macro with properties {name:"AthmanMacro Trial"}

   tell m
      make new trigger with properties {xml:"<dict>
<key>FireType</key>
<string>Pressed</string>
<key>KeyCode</key>
<integer>8</integer>
<key>MacroTriggerType</key>
<string>HotKey</string>
<key>Modifiers</key>
<integer>4096</integer>
</dict>"}

      # Creates Applescript Macro Action to open the Mailbox created further up (not working!!!!)
      make new action with properties {xml:"<dict>
<key>DisplayKind</key>
<string>None</string>
<key>HonourFailureSettings</key>
<true/>
<key>IncludeStdErr</key>
<false/>
<key>MacroActionType</key>
<string>ExecuteAppleScript</string>
<key>Path</key>
<string></string>
<key>Text</key>
<string>tell application \"Mail\"
activate
set theTestMailbox to mailboxPath of account \"🍎Apple iCloud\"
set selected mailboxes of front message viewer to theMailbox
end tell</string>
<key>TimeOutAbortsMacro</key>
<true/>
<key>TrimResults</key>
<true/>
<key>TrimResultsNew</key>
<true/>
<key>UseText</key>
<true/>
</dict>"}
   end tell
end tell

Nige_S · February 12, 2023, 10:30pm

It's a bit difficult to tell with no formatting, so try editing your post so that the AppleScript is in a code block -- put three back-ticks on the line before your code starts and three more on the line after it finishes:

```
Your code here
```

That said...

These lines inside your XML string probably need to have their quotes escaped:

tell application \"Mail\"
activate
set theTestMailbox to mailboxPath of account \":apple:Apple iCloud\"

athmandest · February 12, 2023, 10:39pm

#Run this script when you have selected a message in mail app

#Get info of the selected message in mail app
tell application "Mail"
	activate
	set selectedMessage to selection
	set thisMessage to item 1 of selectedMessage
	set thisSender to sender of thisMessage
	set thisEmail to extract address from thisSender
	set thisName to extract name from thisSender
	set thisEmailLabel to "Work"
	set theMacroGroupName to "Trial Automations Macro Group"
	set theTestMailbox to "TestVariable"
end tell


#Close Mail Application if open
tell application "Mail"
	quit
end tell

# Create new contact in contact app
tell application "Contacts"
	set thePerson to make new person with properties {first name:thisName, last name:""}
	tell thePerson
		make new email at end of emails with properties {label:thisEmailLabel, value:thisEmail}
	end tell
	save
end tell

delay 2

#Create new mailbox with person full name
tell application "Mail"
	activate
end tell
delay 0.6
tell application "System Events" to click UI element "Mail" of list 1 of application process "Dock"
tell application "System Events" to set frontmost of process "Mail" to true

delay 1

tell application "Mail"
	activate
	tell account "🍎Apple iCloud"
		set fullName to thisName
		make new mailbox with properties {name:"Contacts🙋🏼‍♀️/subFolder"}
		set the name of mailbox named "Contacts🙋🏼‍♀️/subFolder" to fullName
	end tell
end tell

#Create new rule with person full name
tell application "Mail"
	set newRule to make new rule at end of rules with properties {name:thisName, enabled:true, should move message:true}
	set contactString to "Contacts🙋🏼‍♀️/"
	set mailboxPath to contactString & thisName
	tell newRule
		make new rule condition at end of rule conditions with properties {rule type:from header, expression:thisEmail, qualifier:does contain value}
		set move message to (mailbox mailboxPath of account "🍎Apple iCloud" of application "Mail")
	end tell
end tell

#Reveal the created contact
tell application "Contacts"
	activate
end tell
delay 0.6
tell application "System Events" to click UI element "Contacts" of list 1 of application process "Dock"
tell application "System Events" to set frontmost of process "Contacts" to true
delay 1

set selection to thePerson


delay 2

#Reveal the created mailbox
tell application "Mail"
	activate
end tell
delay 0.6
tell application "System Events" to click UI element "Mail" of list 1 of application process "Dock"
tell application "System Events" to set frontmost of process "Mail" to true

delay 0.5
tell application "Mail"

	activate

	set theMailbox to mailbox "Contacts🙋🏼‍♀️/theName" of account "🍎Apple iCloud"

	set selected mailboxes of front message viewer to theMailbox

end tell

delay 2

#reveal the mail preferences
tell application "System Events"
	keystroke "," using command down
end tell
set theMacroGroupName to "Trial Automations Macro Group"
set theMailbox to "TestVariable"

--Creates Macro that opens the new Mailbox when triggered

tell application id "com.stairways.keyboardmaestro.editor"


	if macro group theMacroGroupName exists then
		set theMacroGroup to macro group theMacroGroupName
	else

		-- Will create a New Macro Group
		set theMacroGroup to make new macro group with properties {name:theMacroGroupName, available application xml:"<dict>
					<key>Targeting</key>
					<string>Included</string>
					<key>TargetingApps</key>
					<array>
						<dict>
							<key>BundleIdentifier</key>
							<string>com.apple.mail</string>
							<key>Name</key>
							<string>Mail</string>
							<key>NewFile</key>
							<string>/System/Applications/Mail.app</string>
						</dict>
					</array>
				</dict>"}
	end if
	--Creates new Macro with Ctrl N Trigger
	set m to make new macro with properties {name:"AthmanMacro Trial"}
	tell m
		make new trigger with properties {xml:"<dict>
						<key>FireType</key>
						<string>Pressed</string>
						<key>KeyCode</key>
						<integer>8</integer>
						<key>MacroTriggerType</key>
						<string>HotKey</string>
						<key>Modifiers</key>
						<integer>4096</integer>
					</dict>"}

		--Creates Applescript Macro Action to open the Mailbox created further up (not working!!!!)
		make new action with properties {xml:"<dict>
				<key>DisplayKind</key>
				<string>None</string>
				<key>HonourFailureSettings</key>
				<true/>
				<key>IncludeStdErr</key>
				<false/>
				<key>MacroActionType</key>
				<string>ExecuteAppleScript</string>
				<key>Path</key>
				<string></string>
				<key>Text</key>
				<string>tell application \"Mail\"
					activate
		    set theTestMailbox to mailboxPath of account \"🍎Apple iCloud\"
		   set selected mailboxes of front message viewer to theMailbox
		    		end tell</string>
				<key>TimeOutAbortsMacro</key>
				<true/>
				<key>TrimResults</key>
				<true/>
				<key>TrimResultsNew</key>
				<true/>
				<key>UseText</key>
				<true/>
			</dict>"}
	end tell
end tell

athmandest · February 12, 2023, 10:40pm

quotes escaped. i don't even know what that means.

did i mention that i am a script beginner in general, and applescript beginner in particular?

Nige_S · February 12, 2023, 11:10pm

In AppleScript you wrap literal text -- strings -- in quotes: "I am a text string". So you can't put quotes in the string because it will confuse things. You have to "escape" them so AppleScript knows to treat them as text rather than as the end of the string: "I am a string with \"quotes\" in it".

But your properly-escaped quotes may have got mashed in your first post -- your latest looks much better.

So -- you say the last part doesn't work. Doesn't work in what way? What is it you'd expect to happen that doesn't, or what does happen that you don't expect? Any error messages?

athmandest · February 12, 2023, 11:22pm

the applescript in question should be the macro action that should tell the mail app to open the mailbox that has been created a little further up in the script.

Nige_S · February 13, 2023, 12:27am

So to be clear -- the AppleScript does everything correctly, including creating the KM macro, but when you run the KM macro it doesn't select the right folder in Mail?

If so... Line 90 is

set theMailbox to mailbox "Contacts🙋🏼‍♀️/theName" of account "🍎Apple iCloud"

...setting the theMailbox variable to the Mail subfolder that was created earlier. But line 103

set theMailbox to "TestVariable"

...set the theMailbox variable back to a string. Line 161 then tries to use the theMailbox variable to select a mail folder, but that won't be the one you created earlier because you've now set it to "TestVariable".

Try commenting out line 103 by putting two dashes at the start:

--set theMailbox to "TestVariable"

...and see if that helps.

Remember, nobody here will have Mail, Contacts, etc set up the way you do so your issue is really difficult to replicate. You've got other strange stuff going on -- quitting Mail and relaunching it for seemingly no reason; activating apps and clicking on their Dock icon and making them frontmost; odd emojis (I think that's what they are) in strings -- which will also make people hesitant to run the script. So you'll need to explicitly explain the problem you are having, to help people help you.

stationagent · July 17, 2023, 2:02pm

Does anyone know if there's a way to get all the url triggers preferably with all the corresponding macro titles? I want to import all of them into Anybox's Any Dock feature.

tiffle · July 17, 2023, 2:14pm

These two actions will get all your macro names and all their UIDs. It's up to you to turn them into triggers (as per post #2 above).

Keyboard Maestro Actions.kmactions (1.7 KB)

How to Get The URL Trigger of a Macro Into the Clipboard via Script

Options
