How to build an AI prompt writing tool?

Keyboard Maestro Macro Request: AI Prompt Builder with Variable Management

I need assistance creating a macro that streamlines AI prompt construction with structured variables. My current manual process of building prompts with multiple XML-tagged sections is inefficient.

Desired Functionality:

  1. Trigger: Keyboard shortcut launches macro
  2. Interface: Modal form with two components:
    • Primary text area (scratchpad) for prompt composition
    • Variable creation section below scratchpad
  3. Variable Generation:
    • Input field accepts variable names (e.g., "textbook contents")
    • Auto-converts to XML tags: <textbook_contents></textbook_contents>
    • "Insert" button places variable at current cursor position in scratchpad
    • Support multiple variables per session
  4. Output: Submit button copies scratchpad contents to clipboard as plain text
  5. Enhancement: Attachment detection - if scratchpad contains "attached" or "see attached", prepend reminder text: "REMEMBER TO INCLUDE MENTIONED ATTACHMENTS" (open to suggestions here!)

Current Manual Output Example:

Write a product description for the textbook of a video course. Use <textbook_contents> and <textbook_frontmatter> as well as companion <course_description> to generate HTML after the style of <textbook_existing>.

<textbook_contents>
asdfasdf
</textbook_contents>

<textbook_frontmatter>
see attached PDF
</textbook_frontmatter>

<course_description>
asdfHTML
</course_description>

<textbook_existing>
</textbook_existing>

Technical Notes:

  • Form should remain open for iterative editing before submission
  • Cursor position preservation in scratchpad during variable insertion
  • Variable names should auto-format (spaces → underscores, lowercase)

Would appreciate guidance on the form creation approach and any KM-specific implementation considerations you'd recommend.

I think this is going to be tricky to write, as the only way I see it working is with a Javascript-driven custom HTML prompt. You'd have to design it with whatever look you wanted, and then write JavaScript to handle the variable creation, XML conversion, and insertion.

I am definitely not the one to tackle any of that, beyond simple form design ... hopefully a Javascript wizard will chime in with some assistance.

-rob.

FWIW I would like something related – a vacuum cleaner to reduce the amount of text in the world.

( There was always too much, but with the ersatz-text-slurry spigots now opened wide ... )

1 Like

Thanks for the quick response. I came across this video that explains this Streamlit application that accomplishes part of my goal but a number of other things I didn't even think about. Would love to have something like this inside of KM using text files rather than Terminal, if possible.

I'll keep looking and learning, and post back here if I have an update that could benefit the community.

[If the mods want me to stop posting as I learn, I am happy to oblige.]

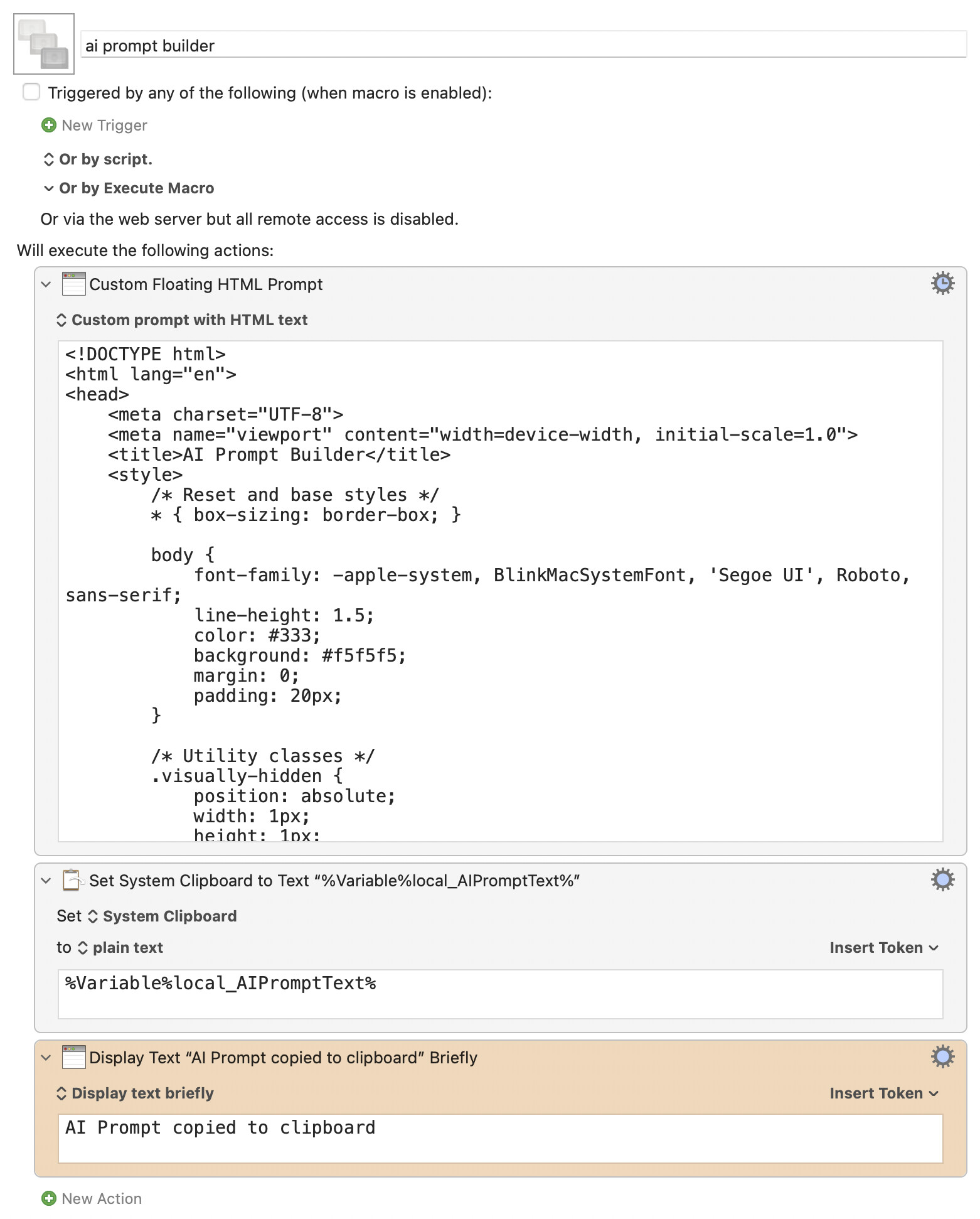

I got something working in Claude that I have tried to turn into a .kmmacros file without success. I want to understand the workings of Keyboard Maestro more, anyway. Hopefully this HTML shows what I'd like to accomplish!

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>AI Prompt Builder</title>
    <style>
        /* Reset and base styles */
        * { box-sizing: border-box; }

        body {
            font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
            line-height: 1.5;
            color: #333;
            background: #f5f5f5;
            margin: 0;
            padding: 20px;
        }

        /* Utility classes */
        .visually-hidden {
            position: absolute;
            width: 1px;
            height: 1px;
            padding: 0;
            margin: -1px;
            overflow: hidden;
            clip: rect(0,0,0,0);
            white-space: nowrap;
            border: 0;
        }

        /* Layout */
        .container {
            max-width: 800px;
            margin: 0 auto;
            background: white;
            padding: 30px;
            border-radius: 10px;
            box-shadow: 0 2px 10px rgba(0,0,0,0.1);
        }

        h1 {
            margin: 0 0 20px;
            font-size: 24px;
        }

        /* Warning banner with transitions */
        .warning-banner {
            background: #fff3cd;
            border: 1px solid #ffeaa7;
            color: #856404;
            padding: 10px 15px;
            margin-bottom: 20px;
            border-radius: 5px;
            font-weight: 500;
            max-height: 0;
            opacity: 0;
            overflow: hidden;
            transition: all 0.3s ease;
        }

        .warning-banner.show {
            max-height: 100px;
            opacity: 1;
            padding: 10px 15px;
            transition: all 0.3s ease-in-out;
        }

        /* Form sections */
        .form-section {
            margin-bottom: 25px;
        }

        label {
            display: block;
            margin-bottom: 8px;
            font-weight: 600;
            color: #555;
        }

        /* Textarea */
        .prompt-input {
            width: 100%;
            min-height: 300px;
            padding: 12px;
            border: 2px solid #e0e0e0;
            border-radius: 6px;
            font-family: 'Menlo', 'Monaco', 'Courier New', monospace;
            font-size: 14px;
            resize: vertical;
            transition: border-color 0.2s;
        }

        .prompt-input:focus {
            outline: none;
            border-color: #4a90e2;
        }

        /* Variable section */
        .variable-section {
            background: #f8f9fa;
            padding: 20px;
            border-radius: 8px;
        }

        .options-group {
            display: flex;
            flex-wrap: wrap;
            gap: 20px;
            margin-bottom: 15px;
        }

        .option-set {
            display: flex;
            gap: 15px;
        }

        .radio-label, .checkbox-label {
            display: flex;
            align-items: center;
            gap: 6px;
            font-size: 14px;
            cursor: pointer;
        }

        input[type="radio"], input[type="checkbox"] {
            cursor: pointer;
        }

        .input-group {
            display: flex;
            gap: 10px;
            margin-bottom: 10px;
        }

        .text-input {
            flex: 1;
            padding: 10px;
            border: 2px solid #e0e0e0;
            border-radius: 6px;
            font-size: 14px;
            transition: border-color 0.2s;
        }

        .text-input:focus {
            outline: none;
            border-color: #4a90e2;
        }

        /* Buttons */
        .btn {
            padding: 10px 20px;
            border: none;
            border-radius: 6px;
            font-size: 14px;
            font-weight: 600;
            cursor: pointer;
            transition: all 0.2s;
            white-space: nowrap;
        }

        .btn:disabled {
            opacity: 0.6;
            cursor: not-allowed;
        }

        .btn-primary {
            background: #4a90e2;
            color: white;
        }

        .btn-primary:hover:not(:disabled) {
            background: #357abd;
        }

        .btn-secondary {
            background: #6c757d;
            color: white;
        }

        .btn-secondary:hover:not(:disabled) {
            background: #545b62;
        }

        .btn-success {
            background: #28a745;
            color: white;
            font-size: 16px;
            padding: 12px 30px;
        }

        .btn-success:hover:not(:disabled) {
            background: #218838;
        }

        /* Helper text */
        .helper-text {
            font-size: 12px;
            color: #666;
            margin-top: 5px;
        }

        /* Preview with progressive disclosure */
        .preview {
            font-family: 'Menlo', 'Monaco', 'Courier New', monospace;
            font-size: 12px;
            color: #495057;
            background: #f8f9fa;
            border: 1px solid #dee2e6;
            border-radius: 4px;
            margin-top: 10px;
            max-height: 0;
            opacity: 0;
            overflow: hidden;
            transition: all 0.2s ease;
        }

        .preview:not(:empty) {
            max-height: 60px;
            opacity: 1;
            padding: 10px;
        }

        /* Recent variables */
        .recent-section {
            margin-top: 15px;
            max-height: 0;
            opacity: 0;
            overflow: hidden;
            transition: all 0.3s ease;
        }

        .recent-section.show {
            max-height: 200px;
            opacity: 1;
        }

        .recent-title {
            margin: 0 0 10px;
            font-size: 14px;
            color: #666;
        }

        .variable-chip {
            display: inline-block;
            background: #e9ecef;
            padding: 5px 12px;
            border-radius: 20px;
            margin: 3px;
            font-size: 13px;
            cursor: pointer;
            transition: background-color 0.2s;
            border: none;
        }

        .variable-chip:hover {
            background: #dee2e6;
        }

        /* Action buttons */
        .actions {
            display: flex;
            gap: 15px;
            justify-content: flex-end;
        }

        /* Loading state */
        .loading {
            opacity: 0.6;
            pointer-events: none;
        }

        /* Media queries for responsiveness */
        @media (max-width: 600px) {
            .options-group {
                flex-direction: column;
                gap: 15px;
            }

            .actions {
                flex-direction: column;
                gap: 10px;
            }

            .input-group {
                flex-direction: column;
            }

            .btn {
                width: 100%;
            }
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>AI Prompt Builder</h1>

        <div id="warningBanner" class="warning-banner" role="alert" aria-live="polite">
            ⚠️ REMEMBER TO INCLUDE MENTIONED ATTACHMENTS
        </div>

        <form id="promptForm">
            <div class="form-section">
                <label for="scratchpad">Prompt Composition</label>
                <textarea
                    id="scratchpad"
                    class="prompt-input"
                    aria-describedby="scratchpad-help"
                    placeholder="Enter your prompt here..."
                    required></textarea>
                <div id="scratchpad-help" class="helper-text">
                    Press Cmd+Enter to copy to clipboard
                </div>
            </div>

            <div class="variable-section form-section">
                <fieldset>
                    <legend class="visually-hidden">Variable Generator Options</legend>

                    <div class="options-group">
                        <div class="option-set" role="radiogroup" aria-label="Tag type">
                            <label class="radio-label">
                                <input type="radio" name="tagType" value="opening" checked>
                                <span>Opening tag only</span>
                            </label>
                            <label class="radio-label">
                                <input type="radio" name="tagType" value="both">
                                <span>Opening & closing tags</span>
                            </label>
                        </div>
                        <div class="option-set">
                            <label class="checkbox-label">
                                <input type="checkbox" id="appendToBottom">
                                <span>Also append as block at bottom</span>
                            </label>
                        </div>
                    </div>

                    <div class="input-group">
                        <label for="variableName" class="visually-hidden">Variable name</label>
                        <input
                            type="text"
                            id="variableName"
                            class="text-input"
                            aria-label="Variable name"
                            aria-describedby="variable-help preview"
                            placeholder="e.g., textbook_contents"
                            autocomplete="off">
                        <button type="button" id="insertBtn" class="btn btn-primary">
                            Insert Variable
                        </button>
                    </div>

                    <div id="variable-help" class="helper-text">
                        Spaces → underscores, special characters removed
                    </div>

                    <div id="preview" class="preview" role="status" aria-live="polite"></div>

                    <div id="recentSection" class="recent-section">
                        <h3 class="recent-title">Recent Variables (click to reuse):</h3>
                        <div id="recentChips" role="group" aria-label="Recent variables"></div>
                    </div>
                </fieldset>
            </div>

            <div class="actions">
                <button type="button" id="cancelBtn" class="btn btn-secondary">
                    Cancel
                </button>
                <button type="submit" id="submitBtn" class="btn btn-success">
                    Copy to Clipboard
                </button>
            </div>
        </form>
    </div>

    <script>
        // State management
        const state = {
            recentVariables: [],
            isSubmitting: false
        };

        // DOM references
        const elements = {
            form: document.getElementById('promptForm'),
            scratchpad: document.getElementById('scratchpad'),
            variableName: document.getElementById('variableName'),
            preview: document.getElementById('preview'),
            warningBanner: document.getElementById('warningBanner'),
            recentSection: document.getElementById('recentSection'),
            recentChips: document.getElementById('recentChips'),
            insertBtn: document.getElementById('insertBtn'),
            cancelBtn: document.getElementById('cancelBtn'),
            submitBtn: document.getElementById('submitBtn'),
            tagTypeRadios: document.querySelectorAll('input[name="tagType"]'),
            appendCheckbox: document.getElementById('appendToBottom')
        };

        // Utility functions
        function formatVariableName(name) {
            return name.trim()
                .toLowerCase()
                .replace(/\s+/g, '_')
                .replace(/[^a-z0-9_]/g, '');
        }

        function setCursorPosition(textarea, position) {
            textarea.focus();
            textarea.setSelectionRange(position, position);
        }

        function updatePreview() {
            const formatted = formatVariableName(elements.variableName.value);
            const tagType = document.querySelector('input[name="tagType"]:checked').value;

            if (formatted) {
                const previewText = tagType === 'both'
                    ? `<code><${formatted}></${formatted}></code>`
                    : `<code><${formatted}></code>`;
                elements.preview.innerHTML = `Preview: ${previewText}`;
            } else {
                elements.preview.innerHTML = '';
            }
        }

        function checkAttachments() {
            const text = elements.scratchpad.value.toLowerCase();
            const hasAttachment = text.includes('attached') || text.includes('see attached');
            elements.warningBanner.classList.toggle('show', hasAttachment);
        }

        function insertVariable(variableName = null) {
            const rawName = variableName || elements.variableName.value.trim();
            if (!rawName) {
                elements.variableName.focus();
                return;
            }

            const formattedName = formatVariableName(rawName);
            const tagType = document.querySelector('input[name="tagType"]:checked').value;
            const appendToBottom = elements.appendCheckbox.checked;

            const textarea = elements.scratchpad;
            const start = textarea.selectionStart;
            const end = textarea.selectionEnd;
            const text = textarea.value;

            // Determine what to insert
            const insertText = tagType === 'both"
                ? `<${formattedName}></${formattedName}>`
                : `<${formattedName}>`;

            // Build new text
            let newText = text.substring(0, start) + insertText + text.substring(end);

            if (appendToBottom) {
                if (!newText.endsWith('\n\n')) {
                    newText += newText.endsWith('\n') ? '\n' : '\n\n';
                }
                newText += `<${formattedName}>\n\n</${formattedName}>`;
            }

            textarea.value = newText;
            setCursorPosition(textarea, start + insertText.length);

            // Update recent variables
            if (!state.recentVariables.includes(formattedName)) {
                state.recentVariables.unshift(formattedName);
                if (state.recentVariables.length > 5) state.recentVariables.pop();
                updateRecentVariables();
            }

            // Clear input
            if (!variableName) {
                elements.variableName.value = '';
                elements.preview.innerHTML = '';
            }

            checkAttachments();
        }

        function updateRecentVariables() {
            if (state.recentVariables.length > 0) {
                elements.recentSection.classList.add('show', true);
                elements.recentChips.innerHTML = state.recentVariables
                    .map(v => `<button type="button" class="variable-chip" data-var="${v}" aria-label="Insert ${v}"><${v}></button>`)
                    .join('');
            }
        }

        async function handleSubmit(e) {
            e.preventDefault();

            if (state.isSubmitting) return;

            let promptText = elements.scratchpad.value.trim();
            if (!promptText) {
                elements.scratchpad.focus();
                return;
            }

            state.isSubmitting = true;
            elements.form.classList.add('loading');

            // Add attachment reminder if needed
            if (elements.warningBanner.classList.contains('show')) {
                promptText = 'REMEMBER TO INCLUDE MENTIONED ATTACHMENTS\n\n' + promptText;
            }

            try {
                window.KeyboardMaestro.SetVariable('AIPromptText', promptText);
                window.KeyboardMaestro.Submit('OK');
            } catch (error) {
                console.error('Error submitting to Keyboard Maestro:', error);
            } finally {
                state.isSubmitting = false;
                elements.form.classList.remove('loading');
            }
        }

        // Event listeners
        elements.variableName.addEventListener('input', updatePreview);
        elements.tagTypeRadios.forEach(radio => {
            radio.addEventListener('change', updatePreview);
        });

        elements.scratchpad.addEventListener('input', checkAttachments);

        elements.insertBtn.addEventListener('click', () => insertVariable());

        elements.variableName.addEventListener('keypress', (e) => {
            if (e.key === 'Enter') {
                e.preventDefault();
                insertVariable();
            }
        });

        // Event delegation for recent chips
        elements.recentChips.addEventListener('click', (e) => {
            if (e.target.classList.contains('variable-chip')) {
                insertVariable(e.target.dataset.var);
            }
        });

        elements.form.addEventListener('submit', handleSubmit);

        elements.cancelBtn.addEventListener('click', () => {
            window.KeyboardMaestro.Cancel();
        });

        // Global keyboard shortcuts
        document.addEventListener('keydown', (e) {
            if (e.key === 'Enter' && (e.metaKey || e.ctrlKey)) {
                e.preventDefault();
                handleSubmit(e);
            }
        });

        // Initialize
        elements.scratchpad.focus();
        checkAttachments();
    </script>
</body>
</html>

I tried putting your code in a Keyboard Maestro Custom HTML Prompt action, but the Javascript wasn't working to insert the variable text into the placeholder area. I asked Claude to fix it, and it made some changes, and then the Javascript worked.

The Copy to clipboard button wasn't doing anything for me either, so I removed the button and its related code. In its place, I had Claude add a Done button, which saves the prompt text to a local Keyboard Maestro variable when clicked. The next step of the macro then just sets the clipboard to that variable, and displays a message saying it's done.

You can use this as an example of how to integrate your code into Keyboard Maestro; I'm not saying it's a perfect solution, but it shows how to do the integration.

Download Macro(s): ai prompt builder.kmmacros (21 KB)

Macro screenshot

Macro notes
  • Macros are always disabled when imported into the Keyboard Maestro Editor.
    • The user must ensure the macro is enabled.
    • The user must also ensure the macro's parent macro-group is enabled.
System information
  • macOS 15.5
  • Keyboard Maestro v11.0.4

Hope that helps a bit;
-rob.

1 Like

Thank you very much, Rob! This works perfectly and will allow me to make tweaks easily. I'll post any other variation I create to the thread.
