How to create a Quick insert character macro?

I have only a limited set of special characters and symbols that I like to insert over and over, so for me Popchar and the Character picker of macOS are overkill and not very handy.

I tried to create a palette that currently contains a starter set of my frequently used special characters and symbols:
Screen Shot 2022-08-20 at 07.13.28
This approach has the following disadvantages:

  • I cannot pop it up via a keyboard shortcut.
  • The palette stays visible after insertion of a char.
  • An X (the 'trigger point') stays visible, and is 'very ugly' (at least in my eyes):
    Screen Shot 2022-08-20 at 07.19.08
    Can I solve these 'problems' at all, using the palette approach? Or should I go another way?

Edit: Here is the macro group:
Quick Insert Macros.kmmacros (30.5 KB)

Would using Voice Control work for you. You could past your characters into Voice Command and by voice call up the special character that you want. Also using Voivce Control you could also just paste in the Macro URL for each special character snippet you have in KM.

Sorry @ohariu, but no, I don't use Voice Control.

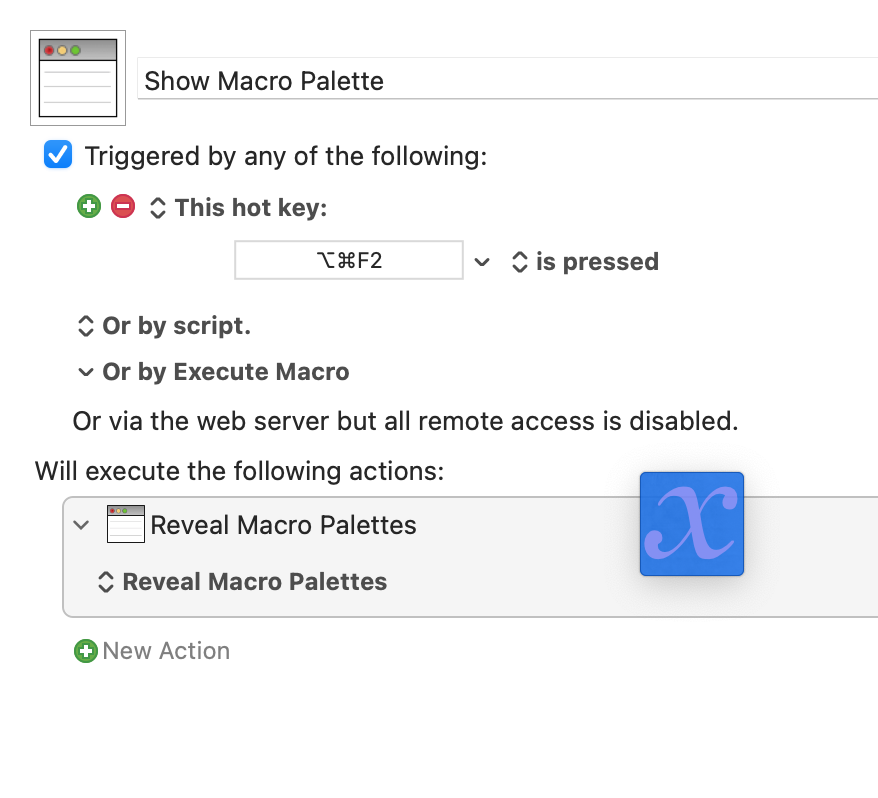

I've been further investigating this topic and I have discovered the action 'Conceal/Reveal Macro Palettes'. I have created a macro to 'enable the macro group' that contains the palette items (the special characters to insert):

Then I found that I had set the palette to automatically shrink. I removed the checkmark from the Shrink checkbox:

So far, so good. Now I can pop up the palette with a keyboard shortcut, which is nice.

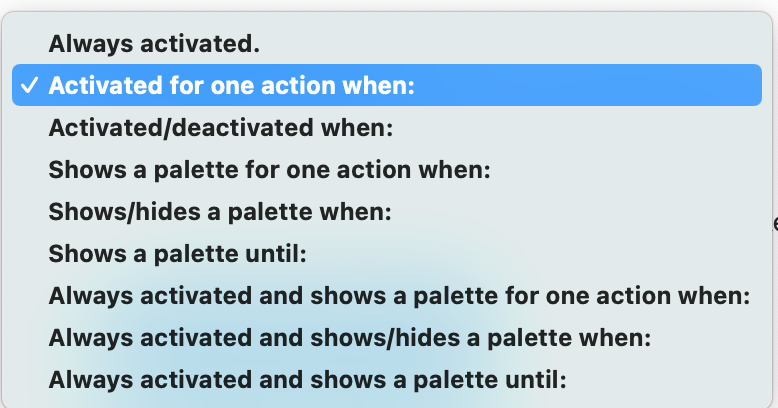

Last task to solve: hide the palette automatically once I click on one of the special characters. As we say in Holland: "I cannot make any chocolate" of the options here:

Question: Can I use any of these options to automatically hide the palette?

show a palette for one action :slight_smile:

1 Like

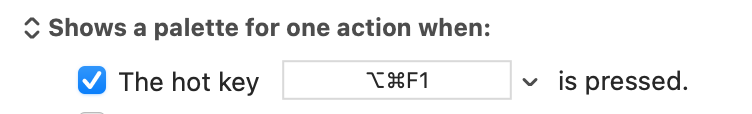

So true. I went completely the wrong way. No need to use the Conceal/Show Macro Palette action at all. Just choose the correct option 'Shows a palette for one action when:'

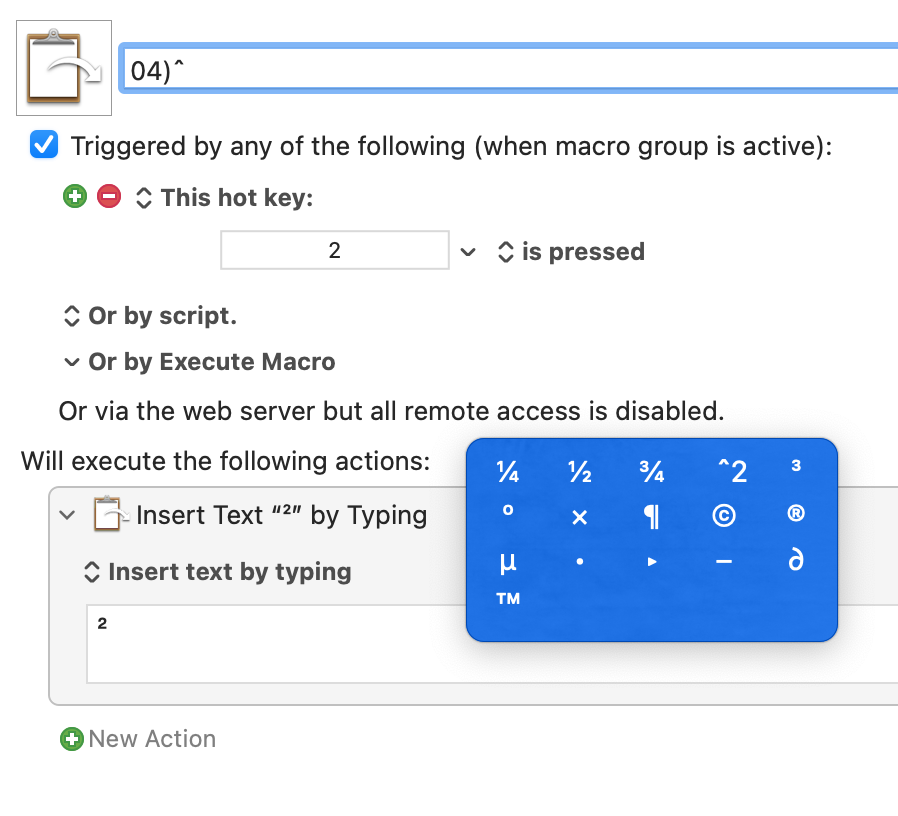

:+1: If you generally want more shortcuts than mouse clicks, you can do that with your special characters too. For example, one quarter = 1, and three quarters = 3, or whatever you want. So you open the palette with your shortcut, type 1 and a quarter is returned, and the palette disappears again. At some point you know the shortcuts by heart, so that you don't even notice the palette anymore. Your palette could then look like this.


1 Like

Yes, thank you @Frankb. Since I plan to add all superscripts and subscripts from 0-9, I'll try to map the superscripts 0-9 to the numbers 0-9 above the Qwerty keys on the keyboard.

Is there a way to hide the keyboard shortcuts from the palette? I thought there was, but I cannot find it anymore. Reason: I only want to display ², ³ etc.

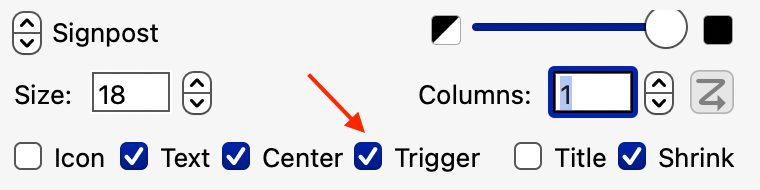

Show trigger or not.


Duh, that simple. Thank you. I was experimenting with this:

Just great!!! I'll finish it this afternoon and post it to the Macro Examples group/forum.

Thanks again!

Note that you have activated "Shrink" in your palette. This means that the palette is only visible as a "symbol". The palette opens only when the mouse is over it If you want that, good, otherwise deactivate this function.

1 Like

Not helpful for your problem. But as a side note, you can change the icon of a macro. In the editor right side panel, double click the image in front of macro name.
