In the last few days I have often wanted to view, as a vector graphic, an SVG snippet that I've copied to clipboard.
What seems to be the simplest or most efficient approach to doing this in Keyboard Maestro ?
( I may well have missed something more direct )

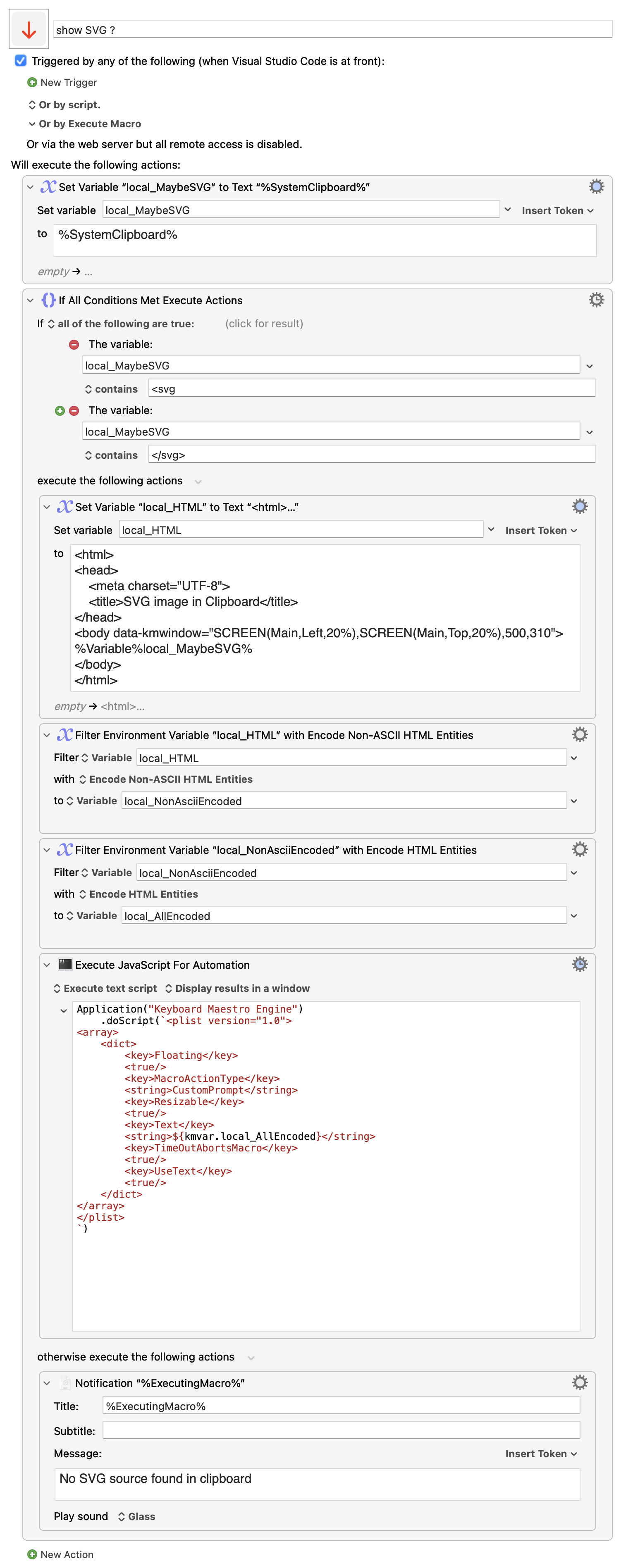

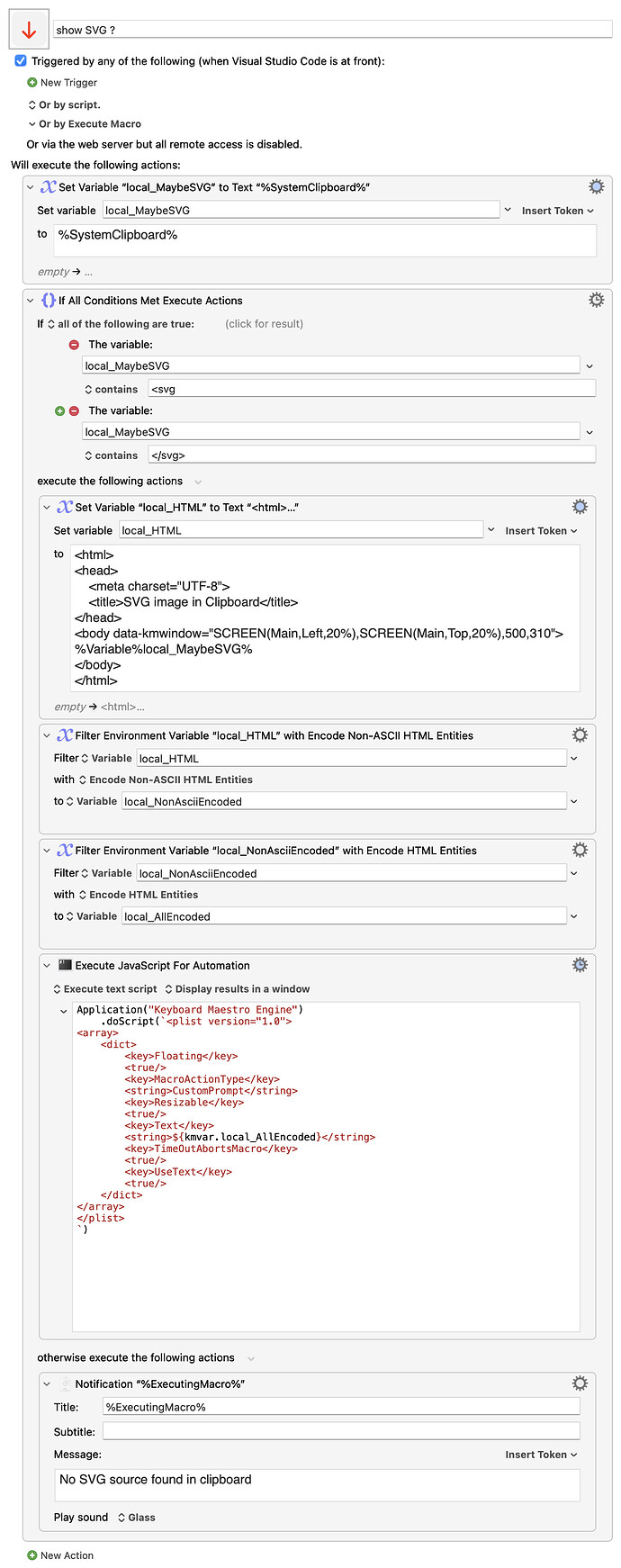

( In the meanwhile, I'm constructing, from XML, a customised HTML prompt, as below )
show SVG ?.kmmacros (6.1 KB)

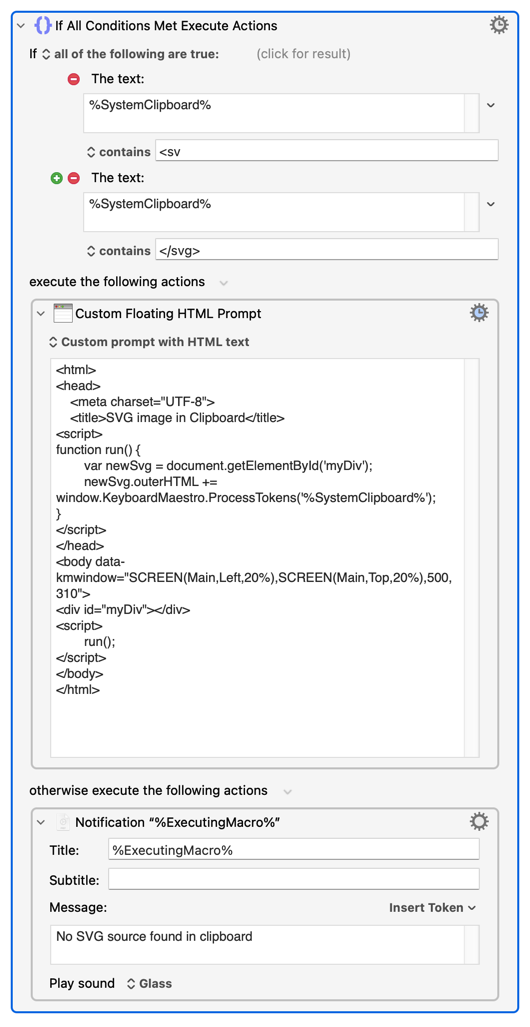

Perhaps straight to the Custom Prompt, pulling in the variable with JS? You could even skip the variable and work directly with the System Clipboard:
<html>
<head>
<meta charset="UTF-8">
<title>SVG image in Clipboard</title>
<script>
function run() {
var newSvg = document.getElementById('myDiv');
newSvg.outerHTML += window.KeyboardMaestro.ProcessTokens('%SystemClipboard%');
}
</script>
</head>
<body data-kmwindow="SCREEN(Main,Left,20%),SCREEN(Main,Top,20%),500,310">
<div id="myDiv"></div>
<script>
run();
</script>
</body>
</html>
JS was shamelessly stolen from this StackOverflow thread and, being 10 years old, should probably be updated for modern syntax!
Very good.

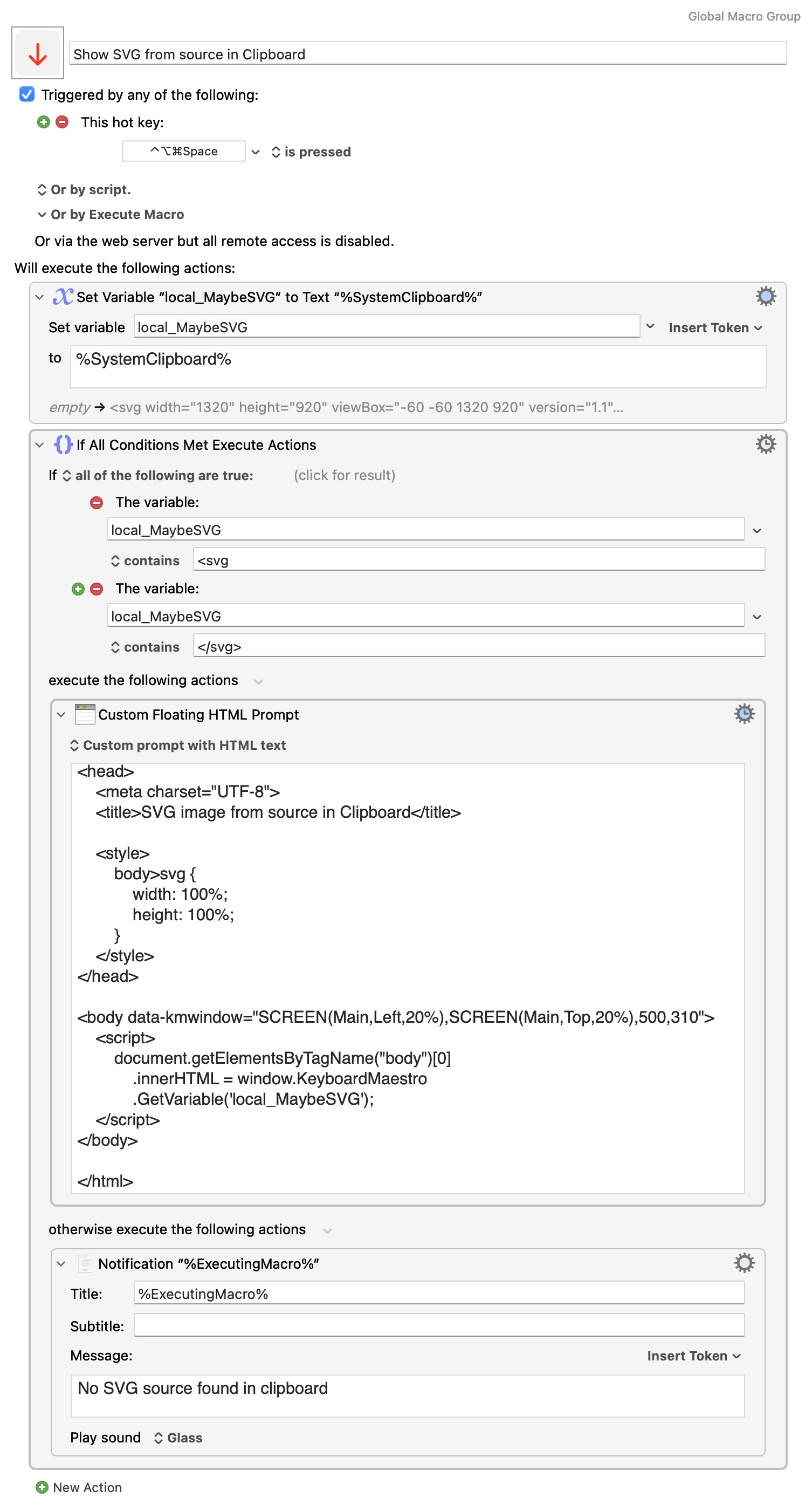

FWIW the variant I'm using is:
<html>
<head>
<meta charset="UTF-8">
<title>SVG image from source in Clipboard</title>
</head>
<body data-kmwindow="SCREEN(Main,Left,20%),SCREEN(Main,Top,20%),500,310">
<script>
document.getElementsByTagName("body")[0]
.innerHTML = window.KeyboardMaestro.GetVariable('local_MaybeSVG')
</script>
</body>
</html>
and by adding a style
body>svg {
width: 100%;
height: 100%;
}
We can make the SVG diagram fit the Keyboard Maestro custom prompt window,
and resize with it.
