Clean Renumber Macro Group — Preview and Renumber Macros Sequentially

Clean Renumber Macro Group

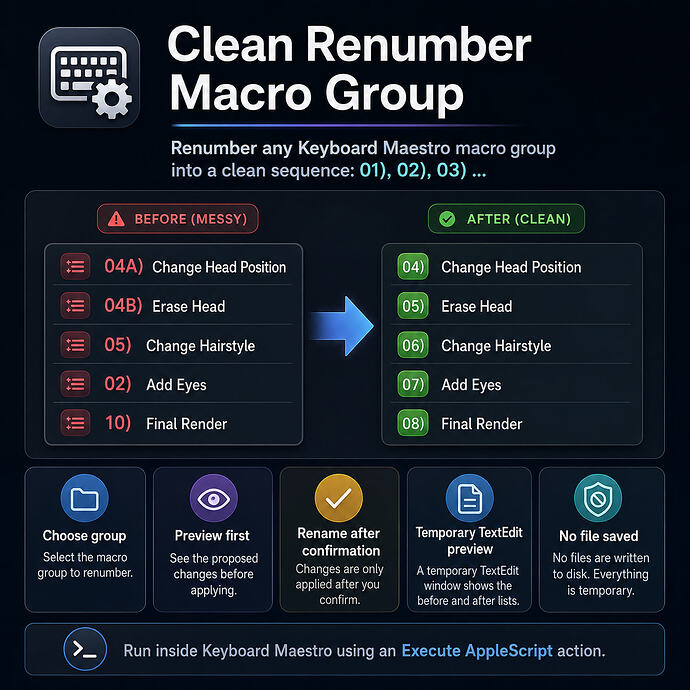

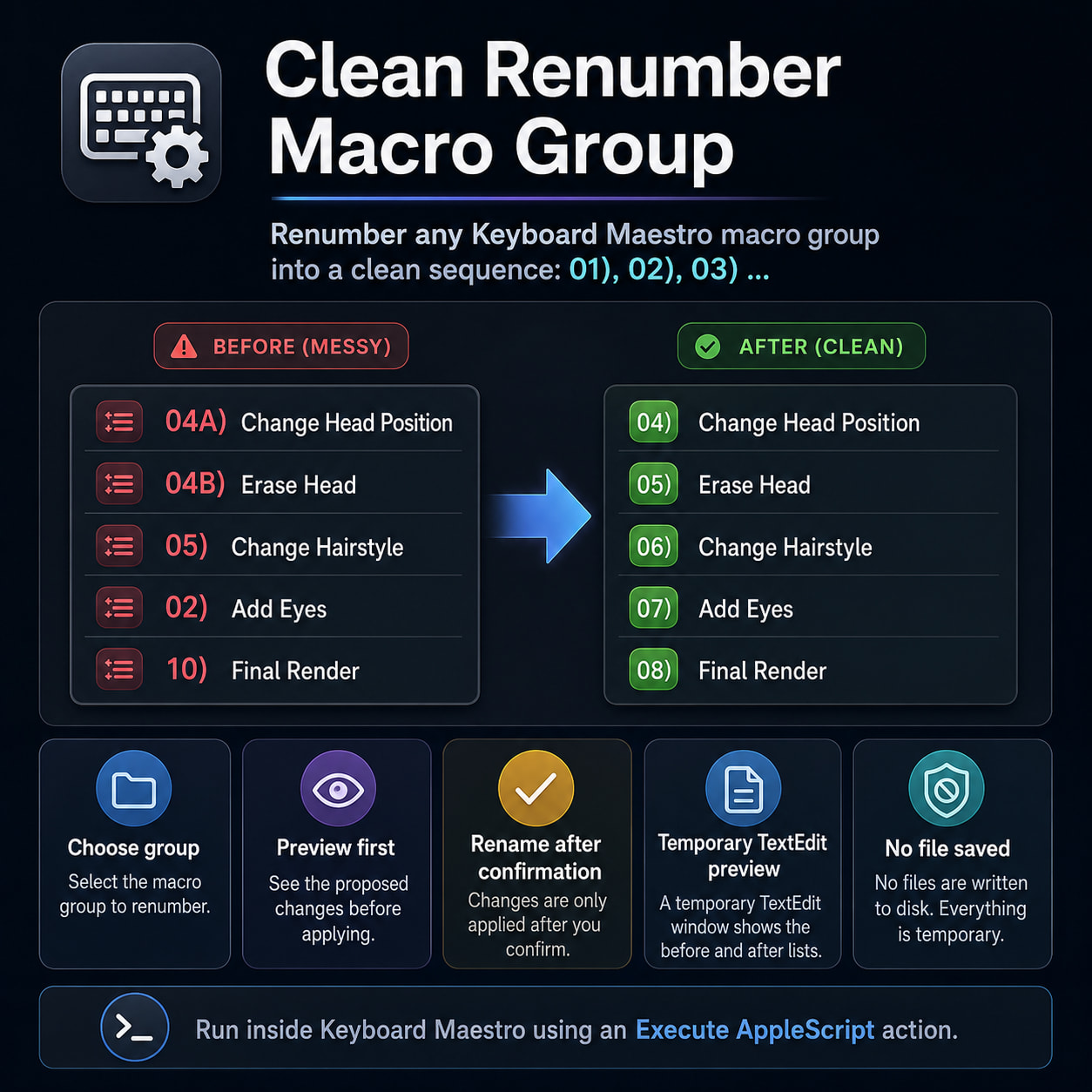

This AppleScript-based Keyboard Maestro utility helps you renumber the macros inside any selected Macro Group into a clean sequential format:

01)
02)
03)
04)
...

It is useful when a macro group becomes messy, especially if you have names like:

04A)
04B)
05)

The script can turn that into a clean sequence like:

04)
05)
06)

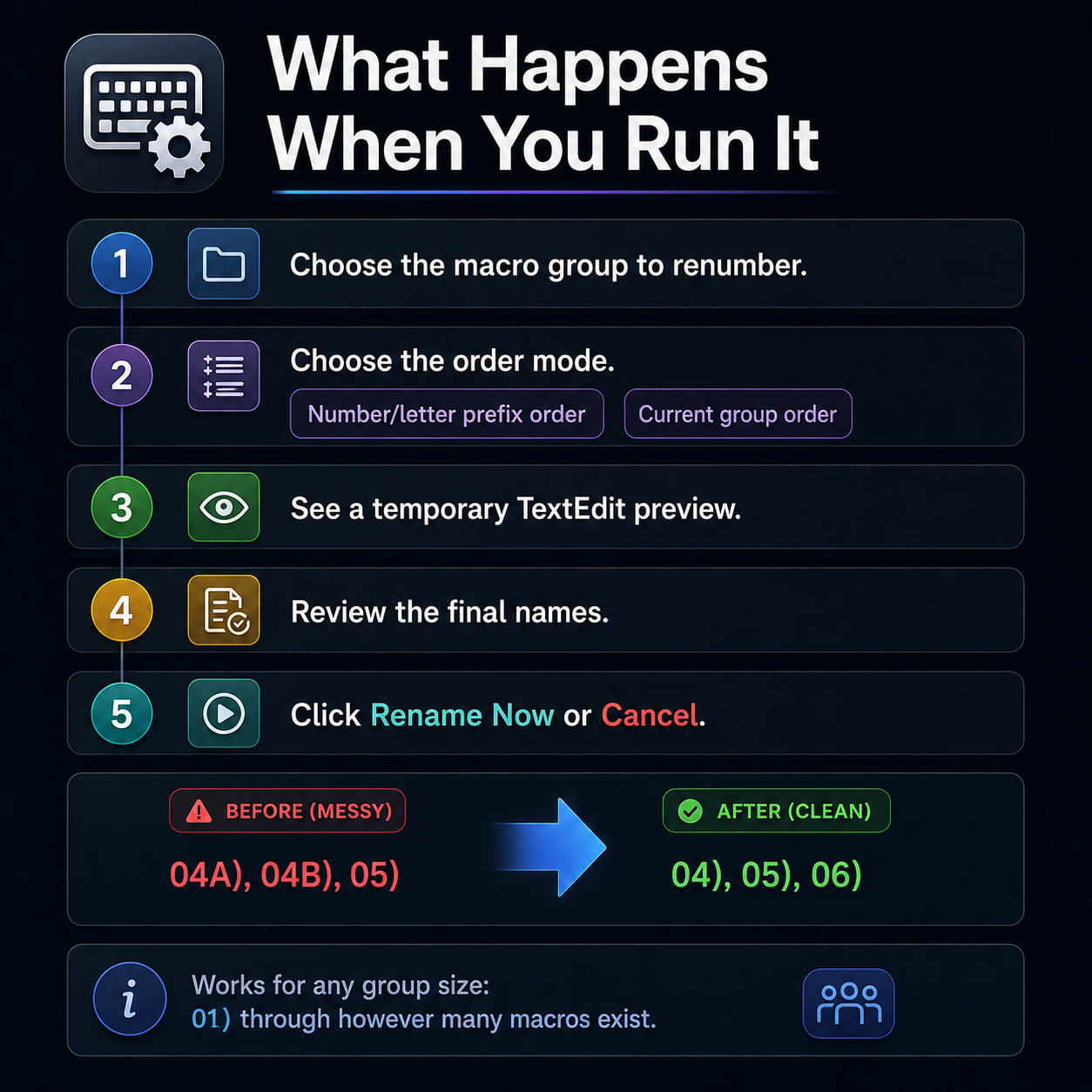

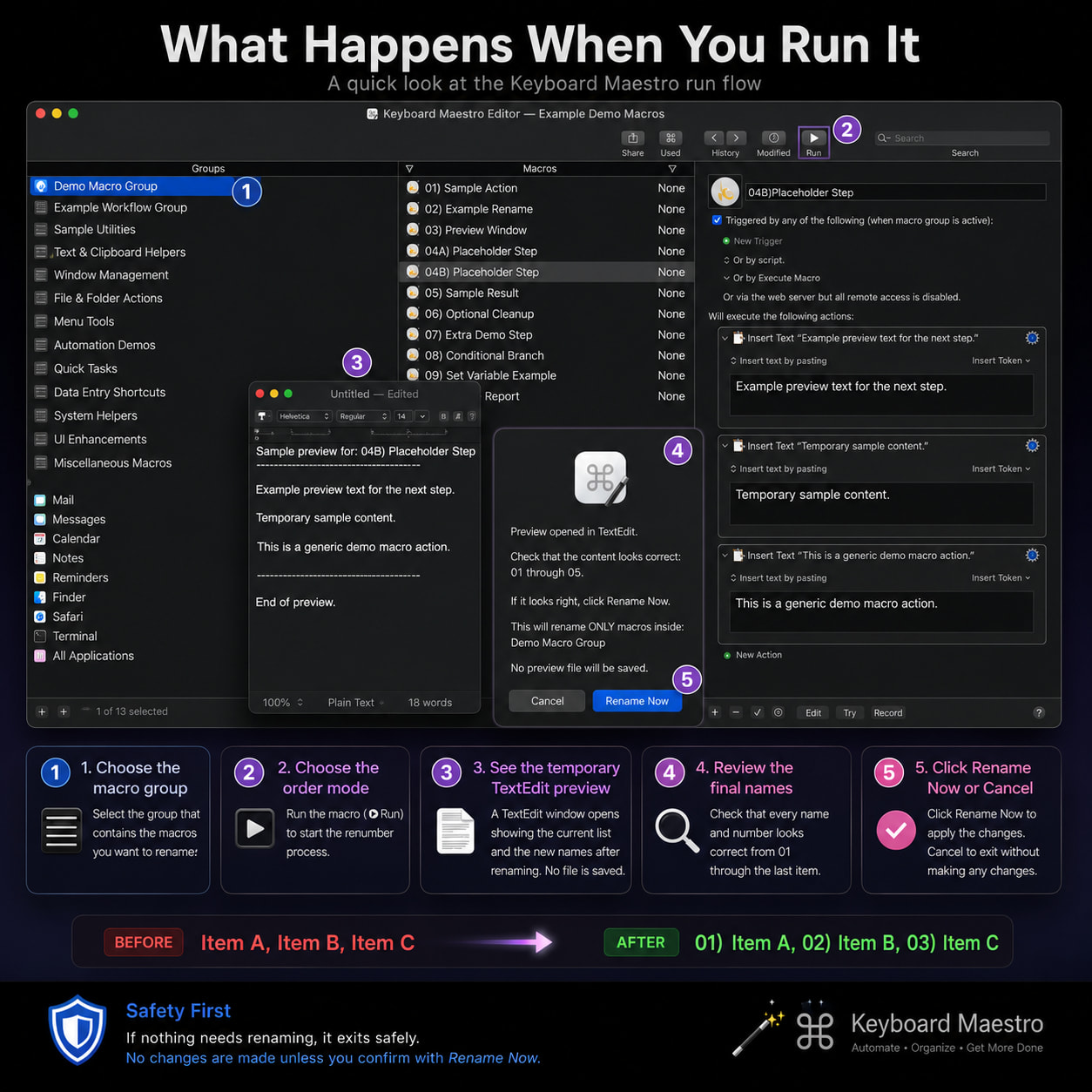

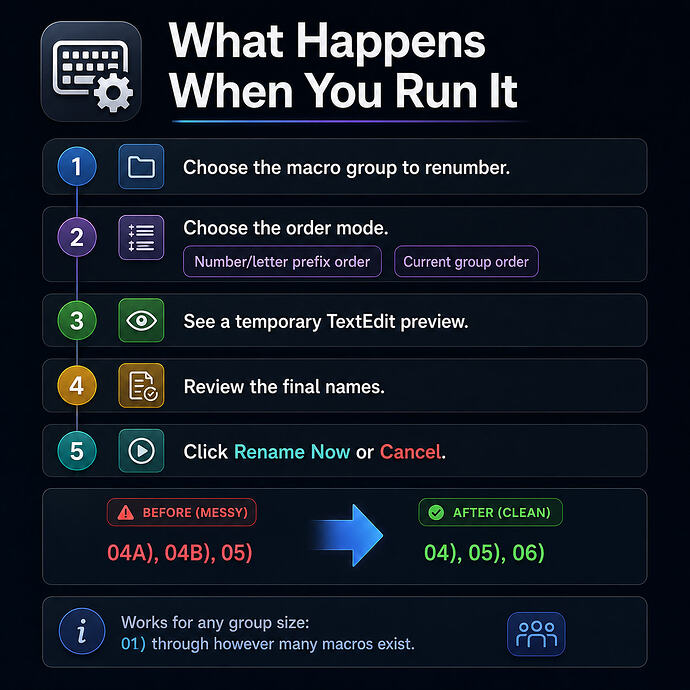

What it does

When you run the macro, it will:

  1. Ask which Keyboard Maestro Macro Group you want to renumber.

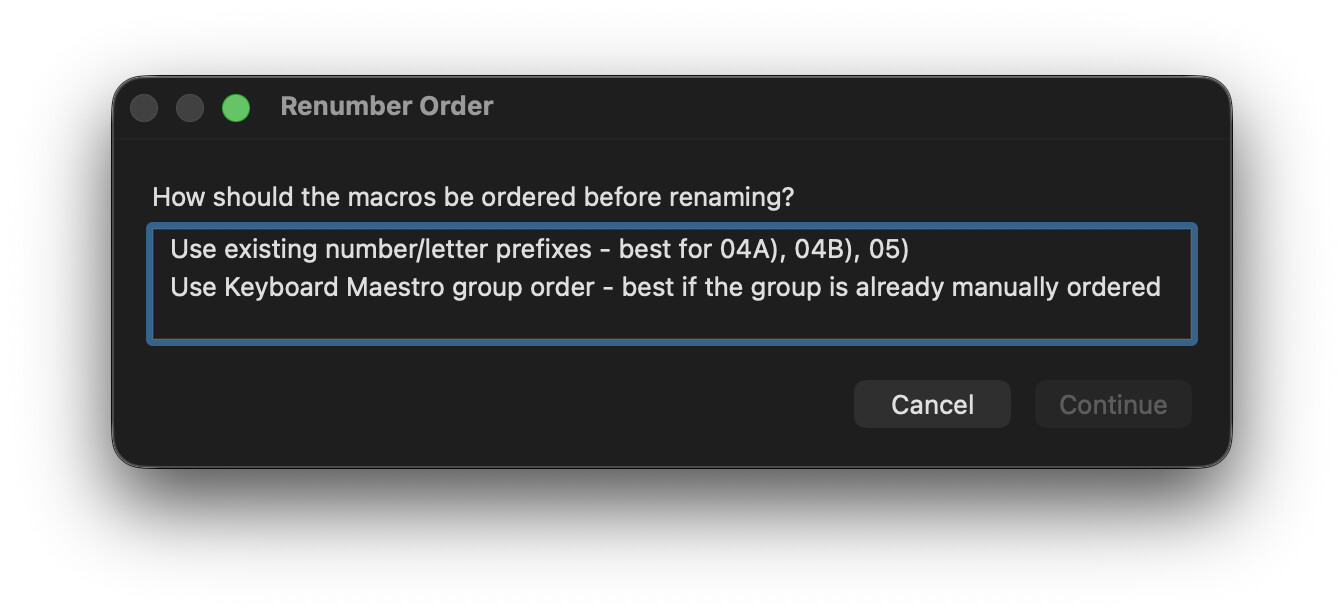

  2. Ask which order mode you want to use:

    • Current Keyboard Maestro group order

    • Existing number/letter prefix order, useful for names like 04A), 04B), 05)

  3. Show a temporary TextEdit preview of the final names before changing anything.

  4. Rename the macros only after you click Rename Now.

  5. Close the temporary TextEdit preview afterward.

  6. Stop safely if nothing needs renaming.

Nothing is changed unless you confirm it.

Recommended setup

Instead of sharing a .kmmacros file, I recommend sharing the AppleScript text directly so users can inspect it, copy it, and paste it themselves.

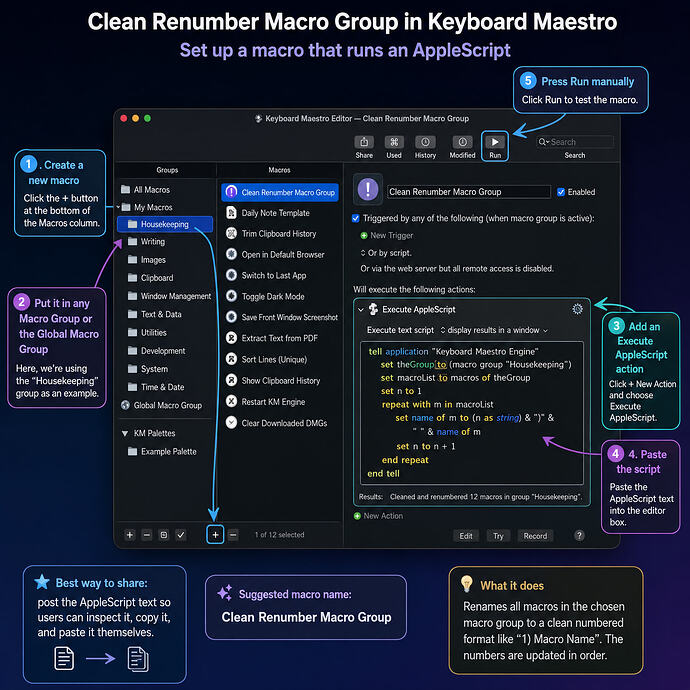

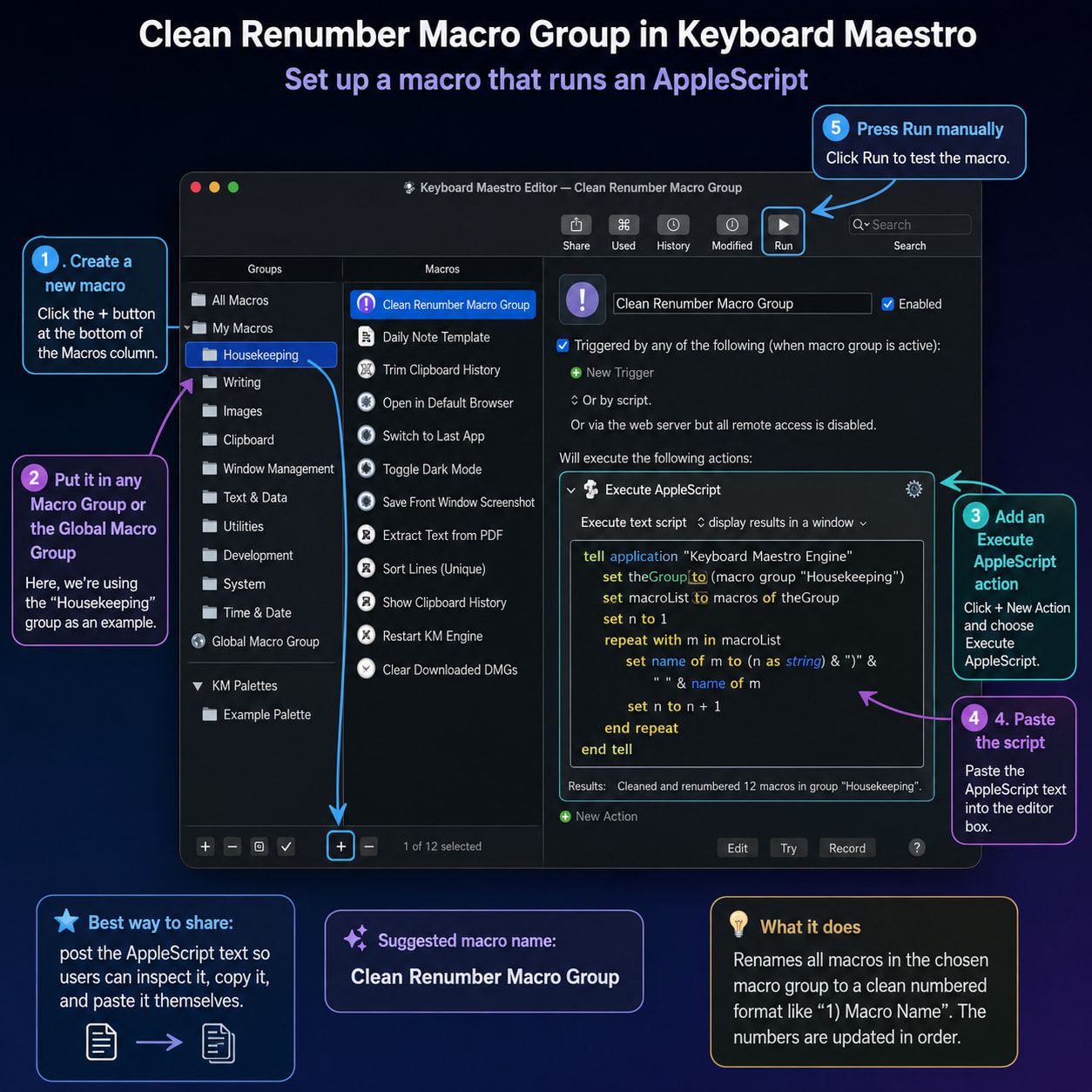

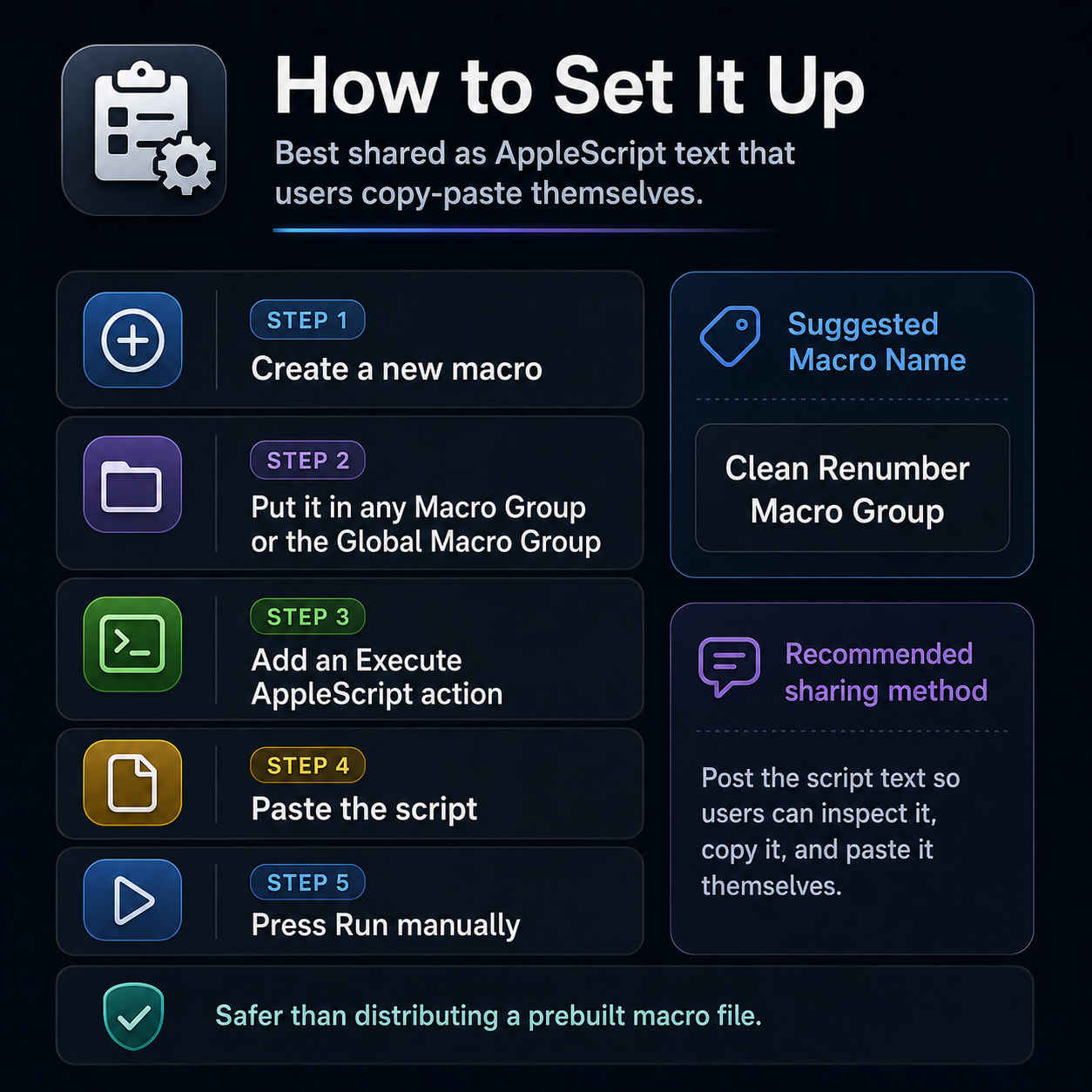

How to install

  1. Open Keyboard Maestro Editor.

  2. Create a new macro.

  3. Suggested macro name:

Clean Renumber Macro Group

  1. Put it in any Macro Group, or in the Global Macro Group.

  2. Add an action:

Execute AppleScript

  1. Set the action to:
Execute text script

  1. Paste the full AppleScript code into that action.

  2. Press Run manually to test it.

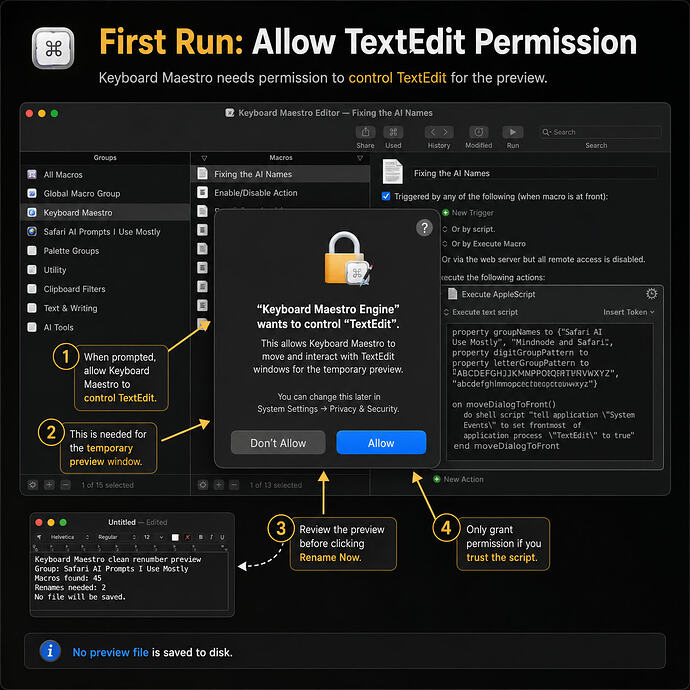

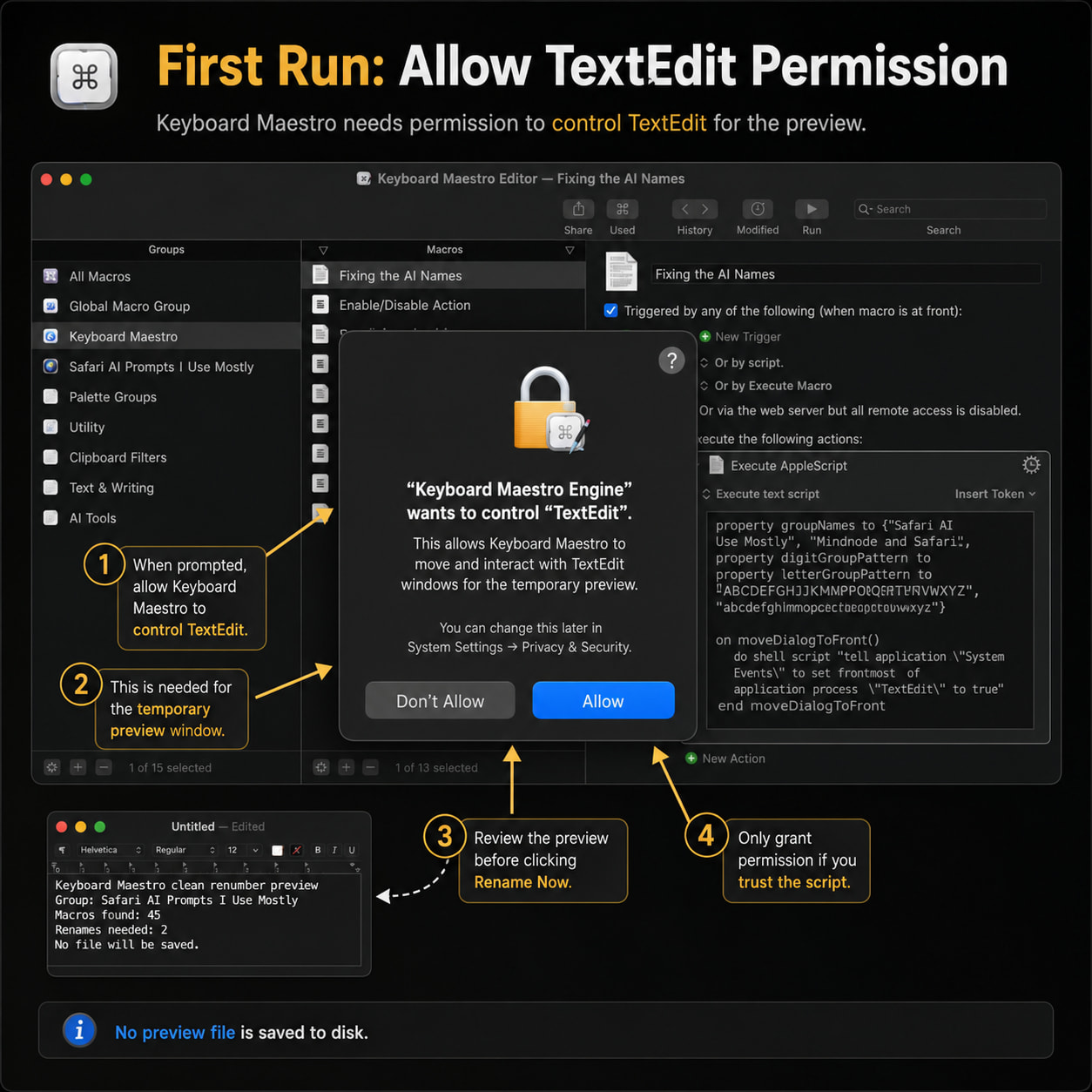

First-run permission note

On first run, macOS may ask for permission to let Keyboard Maestro Engine control TextEdit.

This is needed because the script uses TextEdit to show a temporary preview window before renaming anything.

Click Allow only if you have inspected the script and trust it.

No preview file is saved to disk.

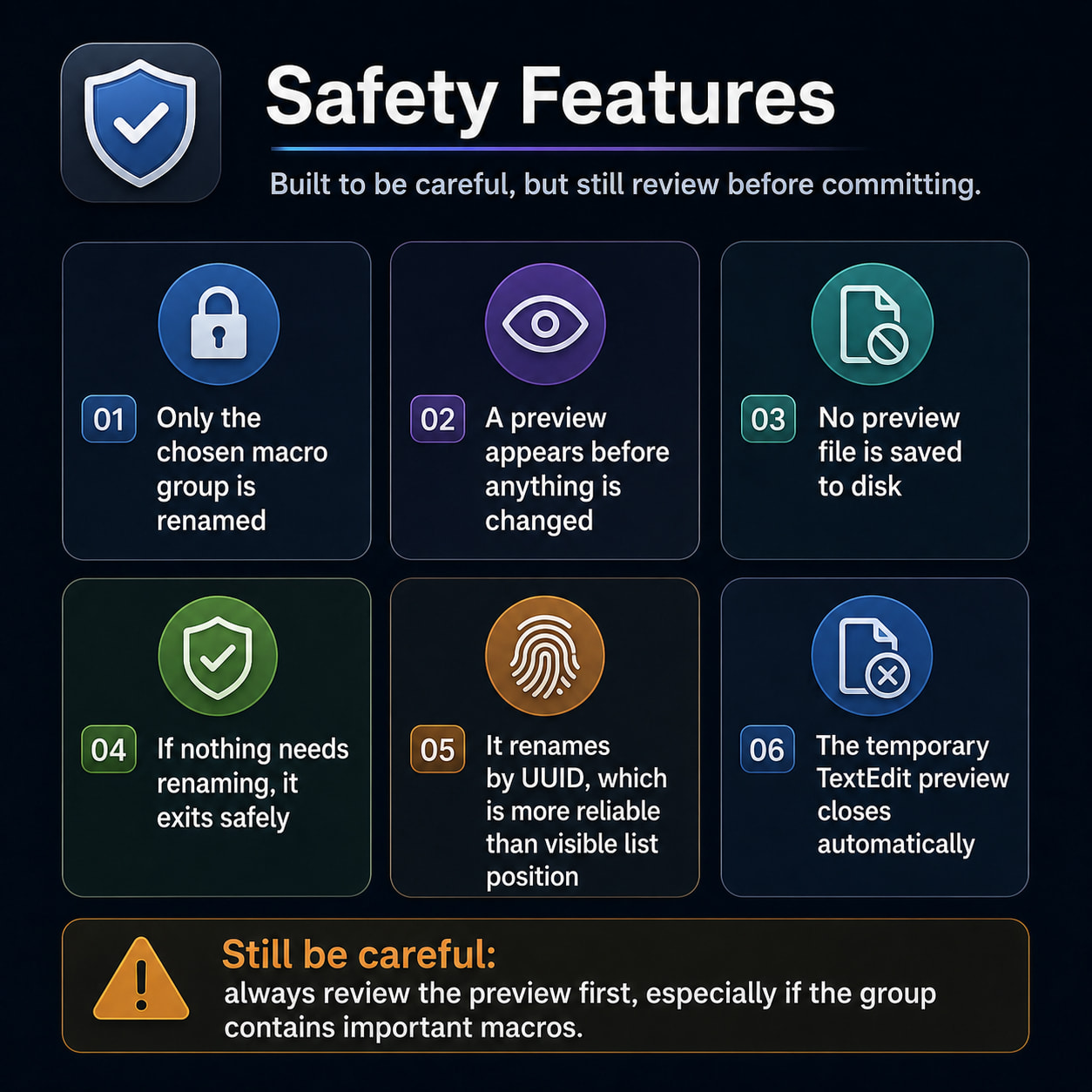

Safety notes

This script is designed to be careful:

  • It only renames macros inside the Macro Group you choose.

  • It shows a preview before applying changes.

  • It does not save a preview file.

  • It closes TextEdit afterward if no other TextEdit documents are open.

  • It exits safely if nothing needs renaming.

  • It renames by macro UUID, which is safer than relying only on visible names.

Still, please review the preview carefully before clicking Rename Now, especially if the Macro Group contains important macros.

Where to paste the script

Paste the AppleScript into this Keyboard Maestro action:

Keyboard Maestro → Execute AppleScript → Execute text script

Then run the macro manually.

pics are from bottom to top

paste below into the apple script

property digitChars : "0123456789"
property letterChars : "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz"
property searchMenuItem : ":magnifying_glass_tilted_right: Search / Filter Groups..."
property showAllMenuItem : ":right_arrow_curving_left: Show All Groups"

on pad2(n)
set t to n as text
if n < 10 then return "0" & t
return t
end pad2

on pad3(n)
set t to n as text
if n < 10 then return "00" & t
if n < 100 then return "0" & t
return t
end pad3

on toLower(theText)
return do shell script "printf %s " & quoted form of theText & " | tr '[:upper:]' '[:lower:]'"
end toLower

on moveDialogToRight()
do shell script "osascript -e 'delay 0.4' -e 'tell application "System Events"' -e 'repeat 30 times' -e 'set movedIt to false' -e 'repeat with appName in {"Keyboard Maestro Engine", "Keyboard Maestro", "Keyboard Maestro Editor", "Script Editor", "osascript"}' -e 'if exists process appName then' -e 'tell process appName' -e 'repeat with w in windows' -e 'try' -e 'if exists button "Rename Now" of w then' -e 'set position of w to {1180, 360}' -e 'set movedIt to true' -e 'exit repeat' -e 'end if' -e 'end try' -e 'end repeat' -e 'end tell' -e 'end if' -e 'if movedIt then exit repeat' -e 'end repeat' -e 'if movedIt then exit repeat' -e 'delay 0.1' -e 'end repeat' -e 'end tell' >/dev/null 2>&1 &"
end moveDialogToRight

on closePreviewAndQuitTextEditIfEmpty(previewDoc)
tell application "TextEdit"
try
close previewDoc saving no
end try

	try
		if (count of documents) is 0 then quit
	end try
end tell

end closePreviewAndQuitTextEditIfEmpty

on leadingPrefixEndPosition(oldName)
-- Valid prefixes:
-- 01)
-- 1)
-- 04A)
-- 4B)

set nameLen to length of oldName
if nameLen is 0 then return 0

set digitLen to 0

repeat with i from 1 to nameLen
	set ch to character i of oldName
	if digitChars contains ch then
		set digitLen to digitLen + 1
	else
		exit repeat
	end if
end repeat

if digitLen is 0 then return 0

set nextPos to digitLen + 1

if nextPos is greater than nameLen then return 0

set nextChar to character nextPos of oldName

if nextChar is ")" then return nextPos

if letterChars contains nextChar then
	set closePos to nextPos + 1
	if closePos is less than or equal to nameLen then
		if character closePos of oldName is ")" then return closePos
	end if
end if

return 0

end leadingPrefixEndPosition

on nameWithoutLeadingPrefix(oldName)
set prefixEnd to my leadingPrefixEndPosition(oldName)

if prefixEnd is 0 then return oldName

if prefixEnd < (length of oldName) then
	return text (prefixEnd + 1) thru -1 of oldName
else
	return ""
end if

end nameWithoutLeadingPrefix

on joinList(theList, delimiterText)
set oldDelims to AppleScript's text item delimiters
set AppleScript's text item delimiters to delimiterText
set joinedText to theList as text
set AppleScript's text item delimiters to oldDelims
return joinedText
end joinList

on buildGroupMenu(allGroupIDs, allGroupNames, filterText)
set groupIDs to {}
set groupNames to {}
set groupMenu to {}
set groupIndex to 0
set filterTextLower to my toLower(filterText)

copy searchMenuItem to end of groupMenu

if filterText is not "" then
	copy showAllMenuItem to end of groupMenu
end if

repeat with i from 1 to count of allGroupNames
	set thisName to item i of allGroupNames
	set thisID to item i of allGroupIDs

	set shouldInclude to false

	if filterText is "" then
		set shouldInclude to true
	else
		if (my toLower(thisName)) contains filterTextLower then
			set shouldInclude to true
		end if
	end if

	if shouldInclude then
		set groupIndex to groupIndex + 1
		copy thisID to end of groupIDs
		copy thisName to end of groupNames
		copy ((my pad3(groupIndex)) & " - " & thisName) to end of groupMenu
	end if
end repeat

return {groupIDs, groupNames, groupMenu}

end buildGroupMenu

-- Load all Macro Groups once
tell application "Keyboard Maestro"
set allGroupIDs to {}
set allGroupNames to {}

repeat with g in every macro group
	copy (id of g as text) to end of allGroupIDs
	copy (name of g as text) to end of allGroupNames
end repeat

end tell

if (count of allGroupNames) is 0 then
display dialog "No Keyboard Maestro macro groups found." buttons {"OK"} default button "OK"
return
end if

-- Choose Macro Group, with visible list plus search/filter option
set currentFilter to ""

repeat
set builtMenu to my buildGroupMenu(allGroupIDs, allGroupNames, currentFilter)
set groupIDs to item 1 of builtMenu
set groupNames to item 2 of builtMenu
set groupMenu to item 3 of builtMenu

if (count of groupIDs) is 0 and currentFilter is not "" then
	display dialog "No Macro Groups matched:" & return & return & currentFilter & return & return & "Try another search." buttons {"Show All", "Search Again"} default button "Search Again"
	if button returned of result is "Show All" then
		set currentFilter to ""
	else
		set searchDialog to display dialog "Type part of the Macro Group name:" default answer currentFilter buttons {"Cancel", "Search"} default button "Search" cancel button "Cancel" with title "Search Macro Groups"
		set currentFilter to text returned of searchDialog
	end if
else
	set promptText to "Choose the Macro Group you want to renumber:"
	if currentFilter is not "" then
		set promptText to promptText & return & return & "Filtered by: " & currentFilter
	end if

	set chosenGroupList to choose from list groupMenu with title "KM Macro Group Renumber" with prompt promptText OK button name "Choose" cancel button name "Cancel"

	if chosenGroupList is false then return

	set chosenGroupText to item 1 of chosenGroupList

	if chosenGroupText is searchMenuItem then
		set searchDialog to display dialog "Type part of the Macro Group name:" default answer currentFilter buttons {"Cancel", "Search"} default button "Search" cancel button "Cancel" with title "Search Macro Groups"
		set currentFilter to text returned of searchDialog
	else if chosenGroupText is showAllMenuItem then
		set currentFilter to ""
	else
		set chosenIndex to (text 1 thru 3 of chosenGroupText) as integer
		set chosenGroupID to item chosenIndex of groupIDs
		set chosenGroupName to item chosenIndex of groupNames
		exit repeat
	end if
end if

end repeat

-- Collect macros from chosen group in Keyboard Maestro group order
tell application "Keyboard Maestro"
set targetGroup to macro group id chosenGroupID

set macroIDs to {}
set oldNames to {}
set enabledStates to {}

repeat with m in every macro of targetGroup
	set oldName to name of m as text

	set isMacroEnabled to true

	try
		set isMacroEnabled to enabled of m as boolean
	on error
		try
			set isMacroEnabled to not (disabled of m as boolean)
		end try
	end try

	copy (id of m as text) to end of macroIDs
	copy oldName to end of oldNames
	copy isMacroEnabled to end of enabledStates
end repeat

end tell

set macroCount to count of macroIDs

if macroCount is 0 then
display dialog "No macros found inside this group:" & return & return & chosenGroupName buttons {"OK"} default button "OK"
return
end if

-- Build final clean names
-- Enabled macros get numbered.
-- Disabled macros lose their number prefix and are not counted.
set newNames to {}
set finalListLines to {}
set changeListLines to {}
set renameCount to 0
set enabledCounter to 0
set disabledCounter to 0

repeat with i from 1 to macroCount
set oldName to item i of oldNames
set isMacroEnabled to item i of enabledStates
set cleanRest to my nameWithoutLeadingPrefix(oldName)

if isMacroEnabled then
	set enabledCounter to enabledCounter + 1
	set newName to (my pad2(enabledCounter)) & ")" & cleanRest
	copy newName to end of finalListLines
else
	set disabledCounter to disabledCounter + 1
	set newName to cleanRest
	copy ("[disabled] " & newName) to end of finalListLines
end if

copy newName to end of newNames

if oldName is not newName then
	set renameCount to renameCount + 1

	if isMacroEnabled then
		copy (oldName & "  ->  " & newName) to end of changeListLines
	else
		copy (oldName & "  ->  " & newName & "    [disabled: removed from numbering]") to end of changeListLines
	end if
end if

end repeat

if renameCount is 0 then
display dialog "Everything already looks correctly numbered." & return & return & ¬
"Group:" & return & chosenGroupName & return & return & ¬
"Enabled macros numbered: " & (enabledCounter as text) & return & ¬
"Disabled macros skipped: " & (disabledCounter as text) & return & return & ¬
"Nothing was renamed." buttons {"OK"} default button "OK"
return
end if

set reportText to "Keyboard Maestro clean renumber preview" & linefeed & ¬
"Group: " & chosenGroupName & linefeed & ¬
"Total macros found: " & (macroCount as text) & linefeed & ¬
"Enabled macros to number: " & (enabledCounter as text) & linefeed & ¬
"Disabled macros skipped from numbering: " & (disabledCounter as text) & linefeed & ¬
"Renames needed: " & (renameCount as text) & linefeed & ¬
"Order mode: Keyboard Maestro group order" & linefeed & ¬
"No file will be saved." & linefeed & linefeed & ¬
"FINAL NAMES AFTER RENAME:" & linefeed & ¬
"Disabled macros are shown with [disabled] in this preview only." & linefeed & linefeed & ¬
my joinList(finalListLines, linefeed) & linefeed & linefeed & ¬
"CHANGES:" & linefeed & linefeed & ¬
my joinList(changeListLines, linefeed)

-- Preview
tell application "TextEdit"
activate
set previewDoc to make new document with properties {text:reportText}

try
	set font of text of previewDoc to "Menlo"
	set size of text of previewDoc to 13
end try

try
	set bounds of front window to {0, 40, 1050, 1000}
end try

end tell

try
my moveDialogToRight()

display dialog "Preview opened in TextEdit." & return & return & ¬
	"Check that the final list is correct." & return & return & ¬
	"Selected group:" & return & chosenGroupName & return & return & ¬
	"Enabled macros will be numbered 01 through " & (enabledCounter as text) & "." & return & ¬
	"Disabled macros will not be counted." & return & return & ¬
	"If it looks right, click Rename Now." & return & return & ¬
	"No preview file will be saved." buttons {"Cancel", "Rename Now"} default button "Rename Now" cancel button "Cancel"

on error
my closePreviewAndQuitTextEditIfEmpty(previewDoc)
display dialog "Cancelled. Nothing was renamed. Temporary preview was closed without saving." buttons {"OK"} default button "OK"
return
end try

my closePreviewAndQuitTextEditIfEmpty(previewDoc)

-- Apply rename by UUID
tell application "Keyboard Maestro"
set targetGroup to macro group id chosenGroupID

repeat with i from 1 to macroCount
	set thisID to item i of macroIDs
	set thisNewName to item i of newNames

	set targetMacro to first macro of targetGroup whose id is thisID
	set name of targetMacro to thisNewName
end repeat

end tell

display dialog "Done. Renamed " & (renameCount as text) & " macros." & return & return & ¬
"Group:" & return & chosenGroupName & return & return & ¬
"Enabled macros are now numbered 01 through " & (enabledCounter as text) & "." & return & ¬
"Disabled macros were skipped from numbering." buttons {"OK"} default button "OK"

This window is asking:

Before I rename the macros to 01), 02), 03), what order should I use?

There are two options:

Option 1

Use existing number/letter prefixes – best for 04A), 04B), 05)

This means the script looks at the current numbers at the beginning of the macro names.

For example, if you have:

04A)Change Head Position
04B)Erase Head
05)Change Hairstyle

It understands the intended order as:

04A
04B
05

Then it cleans it into:

04)Change Head Position
05)Erase Head
06)Change Hairstyle


Option 2

Use Keyboard Maestro group order – best if the group is already manually ordered

This means the script ignores the numbers inside the macro names and uses the order Keyboard Maestro gives for the macros inside that group.

This is useful when the macros do not already have numbers, or when you have already manually arranged them inside Keyboard Maestro and want that order converted into:

01)
02)
03)
04)


Why is the Continue button greyed out?

Because no option has been selected yet. The blue box only means the list has focus, but neither option is actually selected.

Click one of the two lines. Then the Continue button will become active.

I haven't read through all the rest (and you'll want to go back and fix your code blocks), but you might find this "general padder" useful:

on paddedString(reqLength, theText)
	repeat reqLength times
		set theText to "0" & theText
	end repeat
	return (characters -reqLength thru -1 of theText) as text
end paddedString

Called with required final length and the starting text, so:

paddedString(3,"a")
--> "00a"

paddedString(21, "wowser!")
--> "00000000000000wowser!"

paddedString(2, "")
--> "00"

I can't see why, in an AppleScript routine, you're calling out to the shell to perform an AppleScript. What am I missing?

What's the point of the shell script here? It looks like you are forcing to uppercase so you can find a match in alphabetText -- but AS string matching is case-insensitive by default so either that's unnecessary or I'm (again!) completely missing something.

I did’nt write it GPT did.

I know -- because it did exactly the same in this thread, lifting a standard pattern from languages that do case-sensitive string comparison and show-horning it into one that doesn't.

Just because ChatGPT wrote it, that doesn't mean you can't improve it :wink:

More importantly, the formatting in the post with the AppleScript is so borked as to render it unusable. Not being in a code block hides all the \ characters -- that means 12 compilation errors for the user to fix in just the moveDialogToRight() routine.

Yeah well honestly I have no idea how to write this so I asked for GPT’s help and it work and I thought to share with community.

Which is great! It doesn't stop you from asking the LLM questions about what it has written, though, and it doesn't stop you from improving the macro yourself.

The bigger problem is the LLM's advice that:

Good advice in general -- bad advice for KM macros which, by default, are imported "disabled" precisely so people can examine the macro's contents before running it!

As it stands, your macro is unusable. The post containing the script that you want us to Copy and Paste is so badly formatted that

  1. It will require a lot of fixing to successfully compile
  2. It needs a lot of guesswork because important bits may -- or may not -- be missing because they conflict with the Forum's text formatting commands

If you want people to try your macro you should edit that post, replacing its entire contents with a single code block that contains all of your AppleScript.

1 Like

Anyone care to compare/contrast with https://forum.keyboardmaestro.com/t/macro-palette-organizer-v1-3 ?
